Bungalows constructed on clay soils experience three times more subsidence claims than two-storey properties during spring thaw periods, according to 2026 insurance industry data. The single-storey configuration, combined with shallow foundation depths and concentrated load distribution, creates unique vulnerabilities as winter frost retreats and clay soils undergo dramatic volumetric changes. Understanding these risks through specialized Level 3 Building Surveys for Bungalow Subsidence and Thaw Risks: Spring 2026 Clay Soil Protocols Post-Winter has become essential for property owners, buyers, and insurers navigating the seasonal transition.

The spring of 2026 presents particular challenges. Following an unusually severe winter across southern England and the Midlands, clay-rich regions are experiencing accelerated thaw cycles that trigger rapid soil expansion. This seasonal shift demands rigorous assessment protocols that go beyond standard survey procedures. Level 3 Building Surveys for Bungalow Subsidence and Thaw Risks: Spring 2026 Clay Soil Protocols Post-Winter address these specific conditions with enhanced inspection techniques, advanced monitoring equipment, and targeted risk evaluation frameworks.

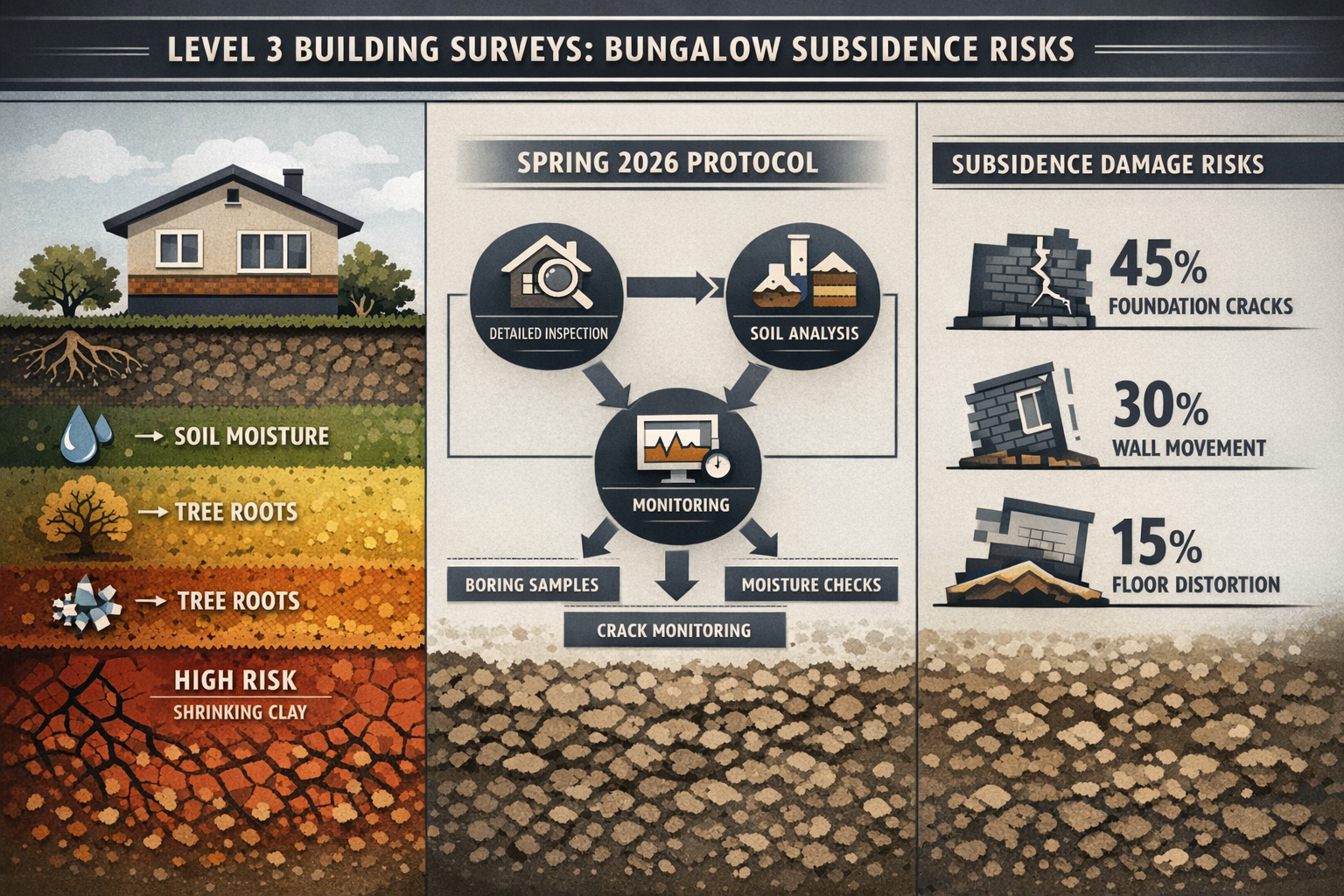

Key Takeaways

• 🏠 Bungalows face amplified subsidence risk on clay soils due to shallow foundations and concentrated structural loads during spring thaw cycles
• 📋 Level 3 surveys provide comprehensive assessment including roof space access, foundation inspection, and clay soil moisture evaluation specific to post-winter conditions
• 🔍 Spring 2026 protocols incorporate advanced monitoring techniques including crack width measurement, floor level surveys, and seasonal movement tracking
• ⚠️ Early detection is critical as progressive subsidence in bungalows can escalate repair costs from £15,000 to over £75,000 if left unaddressed
• 📊 RICS-compliant checklists for 2026 now include specific clay soil plasticity assessments and thaw-related vulnerability indicators

Understanding Bungalow Vulnerability to Clay Soil Subsidence

Why Bungalows Face Greater Subsidence Risk

Bungalows present unique structural characteristics that increase subsidence vulnerability compared to multi-storey dwellings. The single-storey configuration distributes the entire building load across a relatively small foundation footprint, creating concentrated pressure points on the underlying soil. Unlike two-storey properties where load is distributed vertically through intermediate floors, bungalows transfer all structural weight directly to foundation level.

Clay soils compound this vulnerability through their distinctive behavior. These soils contain mineral particles that expand when wet and contract when dry, a property measured by the plasticity index. Southern England regions—including Surrey, Essex, Kent, and parts of the Midlands—contain expansive clay soils with high plasticity values that can undergo volumetric changes of 10-15% during seasonal cycles [1].

The Spring Thaw Phenomenon in 2026

The winter of 2025-2026 brought extended freezing periods that penetrated deeper into soil profiles than typical years. As temperatures rise in March and April 2026, this frozen moisture transforms back to liquid state, causing clay particles to rapidly absorb water and swell. This thaw-induced expansion creates upward pressure on foundations, particularly affecting the perimeter walls of bungalows where ground contact is most direct.

The process occurs unevenly across a property's footprint. South-facing walls experience earlier and more intense thaw cycles due to solar exposure, while north-facing sections remain frozen longer. This differential movement generates torsional stress within the structure, manifesting as diagonal cracking, door frame distortion, and floor level changes.

Foundation Depth and Load Distribution Factors

Most bungalows constructed between 1950-1990 feature strip foundations with depths of 0.9-1.2 meters—adequate for stable ground conditions but insufficient for highly reactive clay soils. Modern building regulations recommend foundation depths of 1.5 meters or greater in areas with known clay subsidence risk, yet many existing bungalows predate these standards [2].

The concentrated load pattern in bungalows means that any foundation movement translates directly into structural distress. Two-storey properties benefit from internal load-bearing walls that provide additional stability and distribute stress across multiple foundation points. Bungalows lack this redundancy, making them more susceptible to progressive damage once subsidence initiates.

Level 3 Building Surveys for Bungalow Subsidence and Thaw Risks: Comprehensive Assessment Protocols

RICS Level 3 Survey Framework and Standards

The Royal Institution of Chartered Surveyors (RICS) Home Survey Level 3 represents the most thorough inspection available for residential properties. This comprehensive assessment includes visual inspection of all accessible areas, including roof spaces, subfloor voids (where present), and external grounds [3]. Surveyors utilize specialized equipment such as damp meters, binoculars for high-level inspection, and crack monitoring devices to evaluate structural condition.

For bungalows on clay soils during spring 2026, Level 3 building surveys incorporate enhanced protocols specifically addressing post-winter thaw risks. These surveys extend beyond standard visual inspection to include:

• Foundation exposure assessment through trial pit excavation at strategic locations
• Clay soil classification using plasticity testing and moisture content analysis
• Seasonal movement monitoring with baseline measurements for ongoing tracking
• Drainage system evaluation to identify water accumulation contributing to soil saturation
• Vegetation proximity analysis assessing tree root impact on soil moisture levels

Spring 2026-Specific Inspection Techniques

The unique conditions of spring 2026 require surveyors to implement targeted inspection methodologies. Crack pattern analysis forms a critical component, distinguishing between historic settlement cracks and active subsidence indicators. Fresh cracks typically display clean edges, lack of paint bridging, and progressive widening when monitored over 2-4 week periods.

Floor level surveys using laser levels or digital inclinometers reveal differential settlement patterns. In bungalows experiencing clay soil subsidence, floors typically slope toward external walls where foundation movement is most pronounced. Variations exceeding 15mm over a 3-meter span indicate significant structural displacement requiring immediate investigation [1].

External inspection during spring thaw periods focuses on moisture ingress points and drainage adequacy. Surveyors examine:

• Gutter and downpipe condition ensuring water directs away from foundations
• Ground level gradients confirming positive drainage away from walls
• Paving and hard landscaping that may channel water toward foundations
• Evidence of standing water or saturated ground adjacent to the building

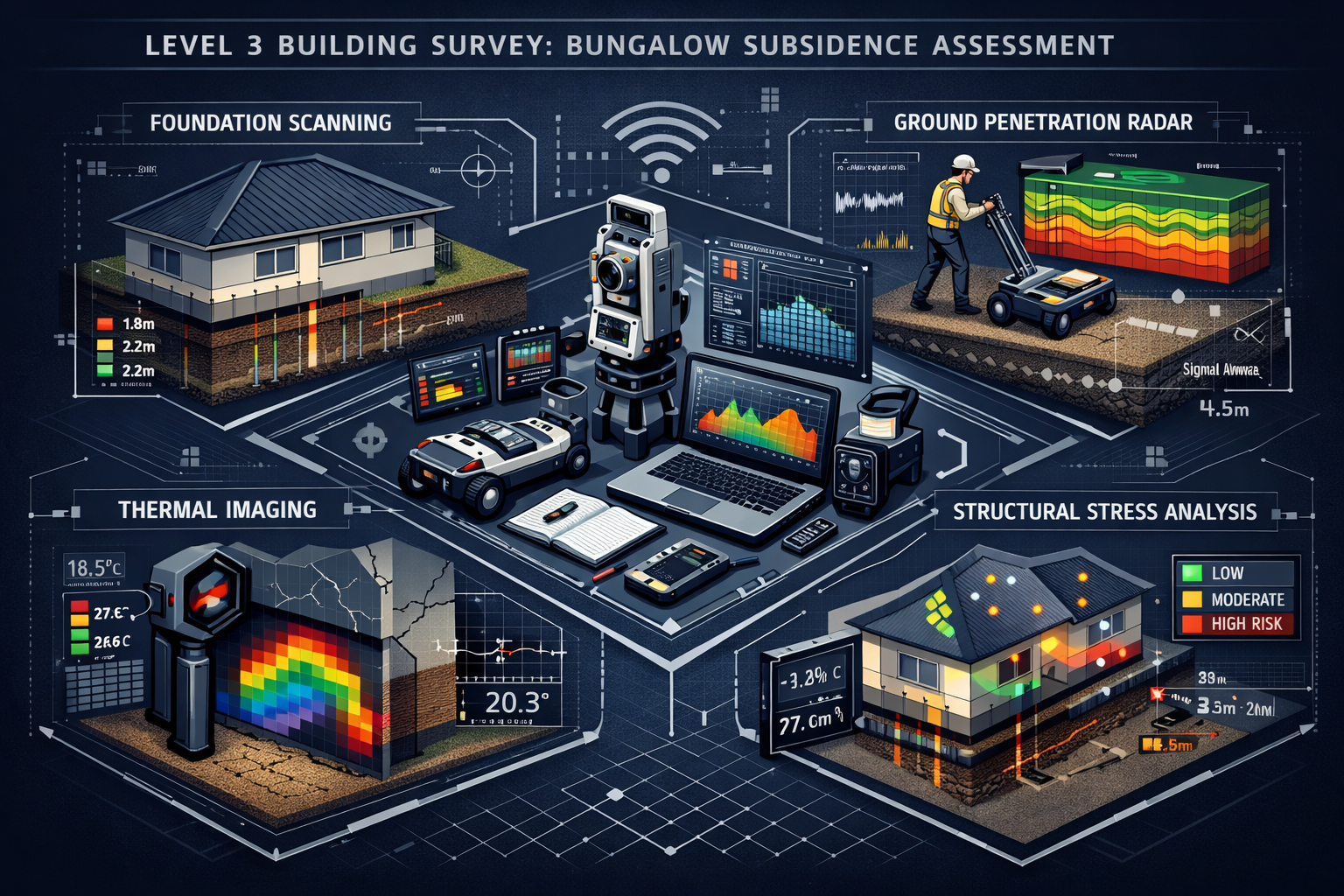

Equipment and Technology in 2026 Assessments

Modern subsidence surveys leverage advanced diagnostic tools that provide quantifiable data rather than subjective observations. Digital crack monitoring gauges attach to existing cracks and record movement with 0.01mm precision, creating timestamped datasets that reveal seasonal patterns and progressive trends.

Ground-penetrating radar (GPR) technology enables surveyors to visualize foundation depth and condition without invasive excavation. This non-destructive technique identifies voids beneath foundations, soil density variations, and moisture distribution patterns within the clay substrate. GPR surveys prove particularly valuable for bungalows where access to subfloor spaces may be limited or nonexistent.

Thermal imaging cameras detect moisture infiltration within wall cavities and beneath floor slabs. During spring thaw periods, these cameras reveal cold spots indicating water accumulation and areas where insulation has become saturated—both factors contributing to localized subsidence risk.

Clay Soil Protocols: Post-Winter Assessment Checklist for Spring 2026

Soil Classification and Plasticity Testing

Understanding the specific clay soil type beneath a bungalow determines subsidence risk severity. Plasticity index (PI) measures the range of moisture content over which soil remains plastic—higher values indicate greater volumetric change potential. Clay soils with PI values exceeding 40 are classified as highly expansive and pose significant subsidence risk [5].

Spring 2026 protocols require soil sampling at multiple locations around the bungalow perimeter. Samples collected from depths of 0.5m, 1.0m, and 1.5m reveal the soil profile and identify the active zone—the depth range experiencing seasonal moisture fluctuation. In southern England, active zones typically extend 1.2-1.8 meters below surface level, often encompassing the entire foundation depth of older bungalows.

Laboratory analysis determines:

• Liquid limit and plastic limit values for PI calculation
• Shrinkage limit indicating the moisture content below which no further volume reduction occurs
• Linear shrinkage percentage quantifying dimensional change potential
• Particle size distribution confirming clay mineral content

Moisture Content Monitoring and Seasonal Baselines

Establishing baseline moisture readings during spring 2026 creates reference points for ongoing monitoring. Surveyors use calibrated moisture meters to measure soil water content at standardized depths and locations. These readings, combined with historical weather data and seasonal precipitation patterns, predict future soil behavior.

The spring thaw period represents a critical measurement window. As frozen ground moisture liquefies and clay particles absorb water, moisture content peaks before summer desiccation begins. Peak spring moisture levels indicate the maximum soil expansion potential, while subsequent summer readings reveal contraction magnitude—the full range defining subsidence risk.

For comprehensive assessment, moisture monitoring includes:

Drainage Assessment and Water Management

Inadequate drainage amplifies clay soil subsidence by maintaining elevated moisture levels that prevent seasonal drying. Spring 2026 protocols emphasize comprehensive drainage evaluation including surface water management, subsurface drainage systems, and groundwater table assessment.

Surveyors inspect all drainage components:

• Surface water systems: Gutters, downpipes, gullies, and connection to storm drains
• French drains: Perimeter drainage systems designed to intercept groundwater
• Soakaways: Capacity and condition of infiltration systems
• Land drains: Agricultural or garden drainage affecting site hydrology

Blocked or damaged drainage systems contribute directly to subsidence risk. A single failed downpipe can discharge thousands of liters annually directly against foundation walls, saturating clay soils and triggering localized expansion. Damp surveys often identify these issues before visible subsidence occurs.

Vegetation and Root Activity Evaluation

Trees and large shrubs create complex subsidence scenarios on clay soils. During growing seasons, roots extract significant moisture from soil, causing desiccation and contraction that draws foundations downward. Conversely, tree removal eliminates this moisture extraction, allowing soil to rehydrate and swell—a phenomenon called heave that can prove equally damaging.

Spring 2026 assessments identify all significant vegetation within influence zones. The British Research Establishment provides guidance on safe distances based on tree species and mature height:

• High water demand species (Oak, Poplar, Willow): Distance = 1.5 × mature height
• Moderate water demand (Ash, Plane, Sycamore): Distance = 1.0 × mature height
• Lower water demand (Birch, Cherry, Rowan): Distance = 0.75 × mature height

For bungalows, even small trees planted too close pose risks. A 6-meter Oak tree should be positioned at least 9 meters from the building, yet many properties have mature specimens within 3-4 meters of foundations—a legacy of landscaping decisions made decades earlier without subsidence awareness.

Detecting Early Warning Signs: Progressive Subsidence Indicators

Crack Pattern Analysis and Classification

Not all cracks indicate subsidence. Settlement cracks from initial foundation compression typically appear within 2-3 years of construction, remain stable, and measure less than 3mm width. Subsidence cracks display progressive widening, often exceed 5mm, and show seasonal variation corresponding to soil moisture cycles [2].

Characteristic subsidence crack patterns in bungalows include:

• Diagonal cracks stepping through mortar joints at approximately 45-degree angles
• Vertical cracks at wall junctions or near openings (doors, windows)
• Horizontal cracks at damp-proof course level indicating foundation movement
• Tapered cracks wider at top than bottom (subsidence) or wider at bottom (heave)

The Building Research Establishment damage classification system categorizes crack severity:

Floor Level Surveys and Differential Settlement

Floor gradient measurement provides objective evidence of structural movement. Surveyors establish a level datum point and measure floor heights at grid intervals throughout the bungalow. Variations create a topographic map revealing settlement patterns.

Typical subsidence signatures include:

• Perimeter depression: Floors slope downward toward external walls
• Localized dishing: Concentrated settlement in specific areas (often near bay windows or corners)
• Uniform tilt: Entire structure leaning in one direction
• Undulation: Wave-like floor profile indicating multiple settlement zones

Floor level changes exceeding 1:100 gradient (10mm per meter) warrant detailed investigation. In bungalows with solid concrete floors, this movement indicates significant foundation displacement as the slab itself provides considerable rigidity.

Door and Window Frame Distortion

Subsidence-induced structural movement manifests in binding doors and windows. Frames become parallelogram-shaped rather than rectangular, preventing proper closure. This distortion occurs progressively—doors that closed freely in winter may stick during spring as thaw-related expansion affects foundations.

Surveyors assess frame distortion using:

• Spirit levels to check vertical alignment of frame sides
• Diagonal measurements comparing opposite corners (equal measurements indicate square frames)
• Gap analysis measuring clearance between door/window and frame at multiple points

Persistent distortion despite adjustment attempts indicates ongoing structural movement requiring investigation. Temporary fixes like planing doors or adjusting hinges address symptoms but ignore underlying subsidence causes.

Implementing Spring 2026 Monitoring Programs

Establishing Baseline Measurements

Effective subsidence monitoring begins with comprehensive baseline documentation during spring 2026. This initial assessment creates reference points for detecting future movement. Professional surveyors photograph all existing cracks, measure widths using digital calipers, and mark monitoring points with dated reference tags.

Baseline documentation includes:

• Photographic record: High-resolution images of all cracks with scale reference
• Crack width measurements: Recorded at widest point with location description
• Floor level survey: Complete topographic mapping of floor gradients
• External level survey: Checking wall verticality and roofline alignment
• Soil moisture readings: Initial clay soil water content at multiple depths

This data establishes the starting condition against which all subsequent measurements compare. Without accurate baselines, determining whether cracks are active or historic becomes speculative rather than evidence-based.

Monitoring Frequency and Duration

Spring 2026 monitoring protocols recommend bi-weekly inspections during the critical March-May period when thaw-related movement peaks. This frequency captures rapid changes as clay soils transition from frozen to saturated states. Summer and autumn monitoring can reduce to monthly intervals, with increased frequency resuming during the following winter-spring cycle.

A minimum 12-month monitoring period is essential to observe full seasonal variation. Clay soil subsidence displays cyclical patterns—expansion during wet periods, contraction during dry spells. Single-point measurements provide limited value; the complete annual cycle reveals whether movement is progressive or merely seasonal fluctuation.

Monitoring surveys conducted by qualified professionals ensure consistent methodology and accurate interpretation. DIY monitoring risks measurement errors and misinterpretation of normal seasonal variation as progressive subsidence.

Threshold Triggers for Remedial Action

Establishing action thresholds prevents both premature intervention and delayed response. Minor seasonal movement (1-2mm crack width variation) represents normal behavior in clay soil regions and doesn't warrant immediate remedial works. Progressive movement exceeding defined limits requires engineering assessment and potential underpinning.

Recommended action thresholds:

• Crack widening >3mm over 6 months: Detailed structural investigation
• Floor level change >5mm over 12 months: Foundation assessment required
• New Category 3 cracks (5-15mm width): Immediate professional evaluation
• Accelerating movement rate: Engineering intervention regardless of absolute values

Insurance implications also influence action timing. Most subsidence policies require evidence of progressive movement before authorizing claims. Comprehensive monitoring data substantiates claims and expedites insurer response when remedial works become necessary.

Remedial Strategies and Prevention Measures

Underpinning Techniques for Bungalows on Clay Soils

When monitoring confirms progressive subsidence, underpinning extends foundation depth beyond the active clay zone to stable strata. For bungalows, this typically involves excavating beneath existing foundations and installing deeper supports that reach non-reactive soil or bedrock.

Common underpinning methods include:

• Mass concrete underpinning: Traditional technique excavating sections beneath foundations and filling with concrete
• Beam and base underpinning: Reinforced concrete beams spanning between deeper foundation pads
• Mini-piled underpinning: Small-diameter piles driven to stable strata, connected to existing foundations via reinforced beams
• Resin injection: Expanding polyurethane foam stabilizing and lifting foundations (suitable for minor settlement only)

For typical bungalow subsidence on clay soils, mini-piled underpinning offers advantages including minimal excavation, faster installation, and reduced risk to existing structure. Costs range from £1,500-£2,500 per linear meter depending on pile depth and site access [2].

Drainage Improvements and Moisture Control

Addressing water management often prevents subsidence progression without requiring underpinning. Enhanced drainage systems maintain consistent soil moisture levels, minimizing seasonal expansion-contraction cycles.

Effective drainage improvements include:

• Perimeter French drains: Gravel-filled trenches with perforated pipes intercepting groundwater
• Soakaway installation: Proper infiltration systems for surface water disposal
• Gutter and downpipe upgrades: Ensuring rainwater directs away from foundations
• Ground level regrading: Creating positive drainage slopes away from building

These measures prove particularly effective for bungalows where relatively simple access to perimeter areas facilitates installation. Costs typically range £3,000-£8,000 for comprehensive drainage systems—significantly less than underpinning while addressing root causes of soil saturation.

Vegetation Management Protocols

Strategic tree and shrub management balances subsidence risk against environmental and aesthetic considerations. Selective removal of high-risk species planted too close to bungalows eliminates moisture extraction that causes clay soil desiccation.

However, tree removal creates heave risk as soil rehydrates following root system death. This process can take 5-10 years to complete, potentially causing upward foundation movement and structural damage. Professional arboricultural assessment weighs removal benefits against heave risks, sometimes recommending root barriers or controlled pollarding rather than complete removal.

For bungalows on clay soils, vegetation management guidelines include:

• Maintain safe distances for new planting based on species and mature size
• Install root barriers for existing trees that cannot be removed
• Regular pruning to limit canopy size and water demand
• Replacement planting with lower water demand species at appropriate distances

Cost Implications and Insurance Considerations

Financial Impact of Subsidence Repairs

Subsidence remediation represents one of the most expensive residential repair scenarios. For bungalows on clay soils, costs vary dramatically based on damage extent and chosen remedial approach:

• Minor crack repairs (Category 1-2): £500-£2,000
• Structural repairs without underpinning: £5,000-£15,000
• Limited underpinning (one or two walls): £15,000-£35,000
• Comprehensive underpinning: £35,000-£75,000+
• Complete rebuild (severe cases): £100,000-£200,000+

Early detection through Level 3 building surveys during spring 2026 enables intervention before damage escalates. Addressing drainage issues and minor movement costs a fraction of extensive underpinning required after years of progressive subsidence.

Insurance Coverage and Claims Process

Standard buildings insurance typically covers subsidence damage, though policies vary in scope and excess amounts. Subsidence excesses of £1,000-£2,500 are common, with some insurers applying higher excesses (£5,000+) for properties with previous claims.

Claims requirements include:

• Evidence of progressive movement: Monitoring data spanning 6-12 months
• Professional survey report: Detailed assessment from qualified structural surveyor
• Investigation of cause: Identifying whether subsidence results from clay soil, tree roots, drainage failure, or other factors
• Proposed remedial works: Engineering specifications for repairs

Insurers may dispute claims where inadequate maintenance contributed to subsidence. Failed gutters, blocked drains, or inappropriate tree planting can provide grounds for claim rejection or reduced settlement. Maintaining comprehensive property maintenance records supports successful claims.

Impact on Property Value and Marketability

Subsidence history affects property values even after successful remediation. Buyers and mortgage lenders view subsidence-affected properties as higher risk, resulting in:

• Reduced market value: 10-25% discount compared to similar unaffected properties
• Limited buyer pool: Many purchasers exclude subsidence properties from consideration
• Mortgage restrictions: Some lenders refuse to lend on properties with subsidence history
• Higher insurance premiums: Ongoing increased costs for buildings insurance
• Mandatory disclosure: Legal requirement to inform potential buyers of subsidence history

Professional structural surveys demonstrating successful remediation and stability over 5+ years can mitigate these impacts. Comprehensive documentation of repairs, monitoring data, and insurance-backed guarantees provide reassurance to future buyers.

Selecting Qualified Surveyors for Spring 2026 Assessments

RICS Qualifications and Specialization

Engaging appropriately qualified professionals ensures accurate assessment and reliable recommendations. RICS-registered surveyors (Royal Institution of Chartered Surveyors) possess recognized qualifications and adhere to professional standards. However, not all chartered surveyors specialize in subsidence assessment—verifying relevant experience is essential.

Key qualifications and experience indicators include:

• MRICS or FRICS designation: Member or Fellow status with RICS
• Building surveying specialism: Specific expertise in structural assessment
• Subsidence experience: Demonstrated track record with clay soil subsidence cases
• Local knowledge: Familiarity with regional soil conditions and typical issues
• Professional indemnity insurance: Minimum £1 million coverage

When comparing different types of survey, ensure the chosen option provides adequate detail for subsidence assessment. Level 2 HomeBuyer Surveys offer limited subsidence evaluation compared to comprehensive Level 3 Building Surveys.

Questions to Ask Potential Surveyors

Before commissioning a Level 3 Building Survey for spring 2026 subsidence assessment, prospective clients should verify surveyor capabilities through targeted questions:

1. How many bungalow subsidence surveys have you completed on clay soils?
2. What specific equipment do you use for crack monitoring and floor level surveys?
3. Will you conduct soil sampling and plasticity testing, or recommend specialists?
4. What is your typical monitoring protocol duration and measurement frequency?
5. Can you provide examples of previous subsidence survey reports?
6. Do you offer ongoing monitoring services or one-time assessments only?
7. What is your fee structure, and what does it include?

Comprehensive responses demonstrating specific technical knowledge and established methodologies indicate qualified professionals. Vague answers or reluctance to discuss technical details suggest insufficient specialization for complex subsidence assessment.

Report Quality and Actionable Recommendations

Professional survey reports should provide clear, actionable guidance rather than ambiguous observations. High-quality subsidence assessment reports include:

• Executive summary: Concise overview of findings and recommendations
• Detailed observations: Comprehensive documentation of all evidence
• Photographic record: Annotated images showing crack locations, measurements, and context
• Risk assessment: Clear evaluation of subsidence likelihood and severity
• Monitoring recommendations: Specific protocols for ongoing assessment
• Remedial options: Detailed explanation of potential interventions with cost estimates
• Priority ranking: Distinguishing urgent issues from minor concerns

Reports concluding with vague statements like "further investigation recommended" without specific guidance provide limited value. Clients should expect definitive professional opinions based on evidence, even when those opinions acknowledge uncertainty requiring monitoring to resolve.

Conclusion: Protecting Bungalows Through Proactive Assessment

The convergence of bungalow structural characteristics, expansive clay soils, and spring 2026 thaw conditions creates heightened subsidence risk requiring specialized assessment protocols. Level 3 Building Surveys for Bungalow Subsidence and Thaw Risks: Spring 2026 Clay Soil Protocols Post-Winter provide the comprehensive evaluation necessary to detect early movement, implement timely interventions, and prevent catastrophic damage.

The financial stakes are substantial. Early detection through professional surveys enables targeted remediation costing £5,000-£15,000, while delayed response can escalate to £75,000+ for extensive underpinning. Beyond direct repair costs, subsidence history permanently affects property values and marketability, making prevention and early intervention economically imperative.

Actionable Next Steps

Property owners and prospective buyers should take immediate action:

1. Commission a Level 3 Building Survey from a RICS-qualified surveyor specializing in subsidence assessment, particularly for bungalows on clay soils in southern England and the Midlands.

2. Establish baseline monitoring during spring 2026 if any subsidence indicators are present, including crack width measurements, floor level surveys, and soil moisture readings.

3. Review drainage systems ensuring gutters, downpipes, and surface water management function properly and direct water away from foundations.

4. Assess vegetation proximity identifying trees and large shrubs within influence zones and consulting arboricultural specialists regarding management strategies.

5. Verify insurance coverage confirming subsidence protection is included in buildings insurance and understanding policy excess amounts and claims requirements.

6. Maintain comprehensive records documenting all maintenance, repairs, monitoring data, and professional assessments to support future insurance claims or property sales.

The spring 2026 thaw period represents a critical window for assessment. Clay soils transitioning from frozen to saturated states reveal subsidence vulnerabilities that may remain hidden during stable conditions. Proactive engagement with qualified professionals, implementation of robust monitoring protocols, and timely remedial action protect both structural integrity and financial investment.

For bungalow owners navigating these challenges, professional guidance from experienced surveyors provides the foundation for informed decision-making. Whether purchasing a property, maintaining an existing home, or addressing emerging concerns, comprehensive assessment following Level 3 Building Surveys for Bungalow Subsidence and Thaw Risks: Spring 2026 Clay Soil Protocols Post-Winter delivers the insights necessary to protect valuable assets against one of the most significant residential structural risks.

To begin your comprehensive assessment, get a quote from qualified professionals who understand the unique challenges bungalows face on clay soils during critical seasonal transitions.

References

[1] Building Survey Protocols For Bungalows Advanced Level 3 Assessments For Subsidence And Structural Risks In 2026 – https://nottinghillsurveyors.com/blog/building-survey-protocols-for-bungalows-advanced-level-3-assessments-for-subsidence-and-structural-risks-in-2026

[2] Building Survey Checklists For Bungalow Purchases 2026 Rics Guidance On Structural Risks And Costs – https://nottinghillsurveyors.com/blog/building-survey-checklists-for-bungalow-purchases-2026-rics-guidance-on-structural-risks-and-costs

[3] Description Of The Rics Home Survey Level 3 – https://www.rics.org/content/dam/ricsglobal/documents/standards/description_of_the_rics_home_survey_level_3.pdf

[5] National Soil Survey Handbook – https://directives.nrcs.usda.gov/sites/default/files2/1719847021/National%20Soil%20Survey%20Handbook%20(entire%20handbook).pdf
