LiDAR and 3D Laser Scanning: Precision Tools for 2026 Property Boundary Disputes

{"cover":"Professional landscape format (1536×1024) hero image with bold text overlay: 'LiDAR and 3D Laser Scanning: Precision Tools for 2026 Property Boundary Disputes' in extra large 70pt white bold sans-serif font with dark drop shadow, centered upper third. Background shows a dramatic aerial view of suburban properties with glowing blue-green LiDAR point cloud data overlaid on rooftops and boundary lines, futuristic scanning beams emanating from a tripod-mounted laser scanner in foreground. Color palette: deep navy blue, electric cyan, white. High contrast, magazine cover editorial quality, photorealistic with data visualization elements.","content":["Detailed landscape format (1536×1024) showing a side-by-side split composition: left half depicts a surveyor using traditional tape measure and theodolite on uneven terrain near a disputed fence line in overcast conditions, right half shows the same terrain rendered as a vivid blue-green 3D point cloud on a laptop screen held by a modern surveyor. Bold label text 'Traditional vs LiDAR' in white sans-serif. Realistic editorial quality, professional property surveying context, dramatic contrast between analog and digital methods.","Landscape format (1536×1024) close-up aerial drone perspective looking straight down at a residential property boundary dispute zone, with colorful LiDAR point cloud data rendered in rainbow gradient (red-yellow-green-blue) showing millimeter-level terrain contours, boundary markers, and encroaching structures. A semi-transparent legal document overlay in the corner references 'CPR Part 35 Evidence'. Clean infographic aesthetic, high detail, professional technical illustration style, property law context.","Landscape format (1536×1024) showing a courtroom-adjacent scene: a large display screen presenting a 3D laser scan point cloud model of a property boundary, with a chartered surveyor in professional attire pointing to specific measurement annotations. Surrounding elements include Land Registry title plan printouts, a laptop showing BIM software, and legal case files. Warm professional lighting, editorial quality, expert witness testimony context, deep blue and gold color accents."]

Boundary disputes cost UK property owners an estimated tens of thousands of pounds per case in legal fees alone — and the root cause is almost always the same: measurement uncertainty. LiDAR and 3D Laser Scanning: Precision Tools for 2026 Property Boundary Disputes represent a fundamental shift in how surveyors, solicitors, and courts approach that uncertainty. Where a tape measure introduces human error and a theodolite depends on line-of-sight conditions, a terrestrial laser scanner captures millions of data points per second with sub-centimeter accuracy — regardless of terrain complexity, vegetation, or lighting.

This article examines how these technologies compare to traditional surveying methods, why they are becoming the standard for legally contested boundaries, and what property owners and professionals need to know before commissioning a survey in 2026.

Key Takeaways

• Modern LiDAR and 3D laser scanning deliver sub-centimeter accuracy, far exceeding traditional tape-and-theodolite methods.
• Point cloud data is court-admissible, CPR Part 35-compliant, and can be re-measured long after fieldwork is complete.
• Combining LiDAR with GNSS RTK positioning and UAV photogrammetry dramatically accelerates data collection on complex terrain.
• 3D scans function as "digital time capsules," preserving pre-dispute site conditions for dilapidation and boundary evidence.
• Using these technologies proactively — before construction or excavation — can prevent disputes rather than simply resolve them.

Why Traditional Boundary Surveying Falls Short in Disputed Cases

For most of the twentieth century, boundary surveys relied on a combination of physical measurement tools: steel tape measures, optical theodolites, and later, total stations. These instruments served their purpose well in straightforward, open terrain. However, their limitations become critical precisely when accuracy matters most — in legally contested cases.

Key weaknesses of traditional methods include:

• Cumulative measurement error: Each measurement taken with a tape or total station carries a small margin of error. Over a long boundary line with multiple turning points, those errors compound.
• Line-of-sight dependency: Optical instruments require clear sightlines. Dense hedgerows, slopes, and built structures — common features in urban and suburban disputes — obstruct readings and force surveyors to use multiple instrument setups, each introducing additional error.
• Static, two-dimensional output: Traditional surveys produce paper plans or basic CAD drawings. These are difficult to interrogate, impossible to re-measure without a site visit, and offer limited persuasive power in court.
• Subjectivity in interpretation: Where physical boundary markers are absent, worn, or disputed, traditional methods rely heavily on the surveyor's judgment about which features to measure and how to interpret them.

In a boundary dispute, a discrepancy of even 50 millimeters can determine whether a garden wall, driveway, or extension sits on the correct side of a legal boundary. Traditional methods simply cannot guarantee that level of precision consistently. [1]

How LiDAR and 3D Laser Scanning Work in Property Surveys

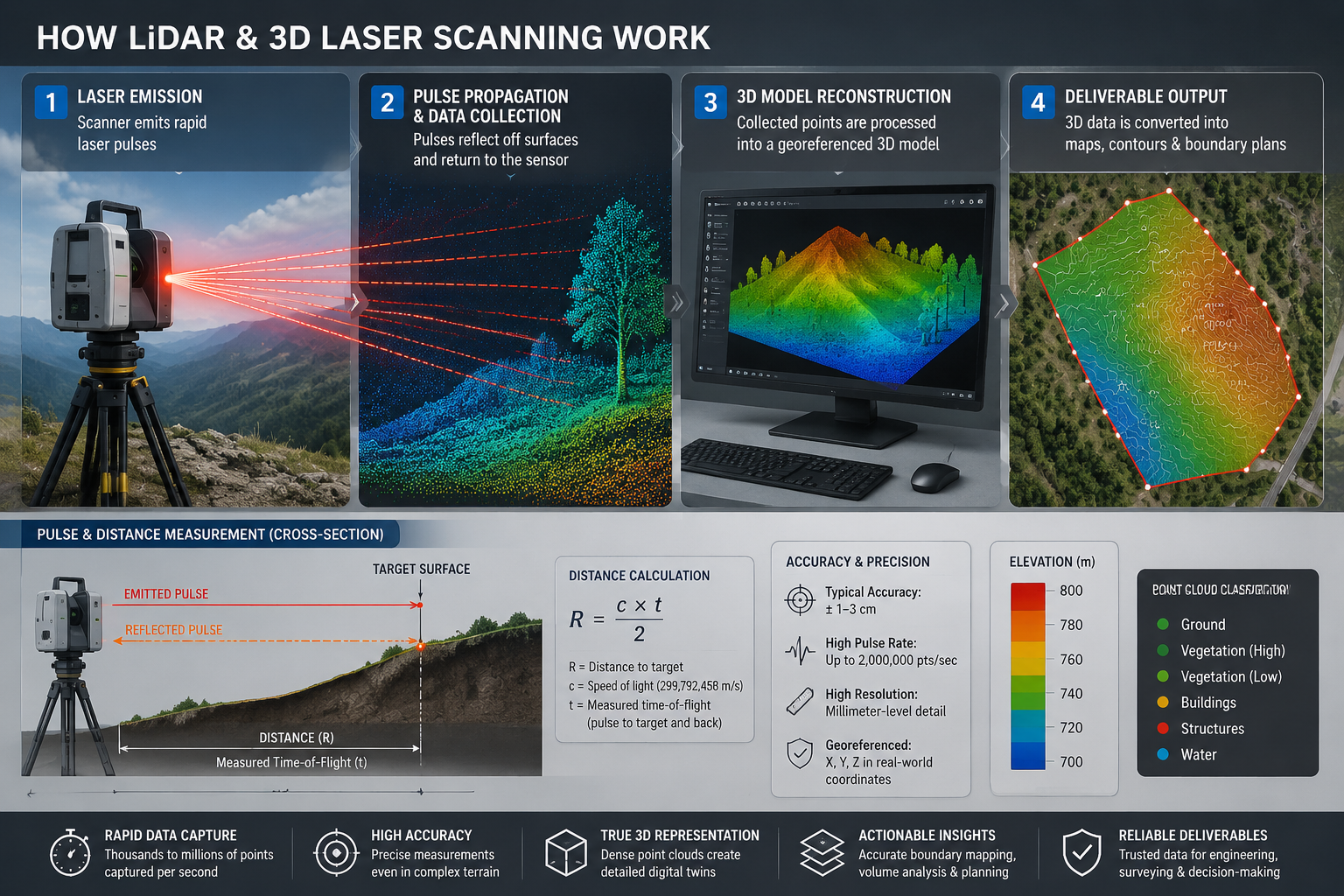

LiDAR — Light Detection and Ranging — works by emitting rapid pulses of laser light and measuring the time each pulse takes to return after striking a surface. A single scan from a tripod-mounted terrestrial laser scanner can capture between 500,000 and 2 million points per second, each with a precise X, Y, and Z coordinate. The result is a point cloud: a dense, three-dimensional representation of the physical environment.

The Technology Stack Behind a Modern Boundary Survey

In 2026, a high-accuracy boundary survey rarely relies on a single technology. The most effective workflows combine:

The integration of GNSS Real-Time Kinematic (RTK) positioning with LiDAR scanning is particularly significant. RTK corrects satellite positioning errors in real time, allowing the point cloud to be anchored to Ordnance Survey National Grid coordinates with high confidence. This means the survey data can be directly compared against Land Registry title plans and historical Ordnance Survey maps — critical for constructing a legal argument. [2]

UAV-mounted LiDAR adds a further dimension. Where ground-based scanners cannot reach — steep embankments, overgrown boundaries, or properties with restricted access — drones equipped with LiDAR sensors can capture data rapidly and safely. [2]

"Point clouds enable re-measurement and analysis long after fieldwork is complete, reducing the need for repeat site visits and providing a comprehensive view of the property." [2]

From Point Cloud to Legal Evidence

Raw point cloud data is processed using specialist software to produce:

• Measured survey drawings accurate to sub-centimeter tolerances
• 3D BIM models that can be navigated virtually
• Cross-sections and profiles showing encroachments or level changes
• Overlay comparisons between current site conditions and historical records

This output is not merely impressive — it is court-admissible. Expert witness surveyors presenting 3D laser scan evidence can demonstrate precisely where a boundary lies, show the jury or judge an interactive model, and withstand cross-examination because every measurement is traceable back to raw data. [6]

For those working with an expert witness surveyor in a boundary dispute, the ability to present this calibre of spatial evidence can be decisive.

LiDAR and 3D Laser Scanning as Precision Tools for 2026 Property Boundary Disputes: Legal Applications

The legal landscape for boundary disputes in England and Wales has become increasingly sophisticated. Courts expect expert evidence to meet the standards set out in CPR Part 35, which requires independence, clarity, and a methodology that can be scrutinised and challenged. LiDAR and 3D laser scanning satisfy all three requirements in ways that traditional surveys often cannot. [6]

CPR Part 35 Compliance and Expert Witness Surveys

Under CPR Part 35, an expert witness surveyor's primary duty is to the court, not the instructing party. The evidence must be objective, reproducible, and clearly explained. A point cloud dataset meets these criteria because:

• Every measurement is recorded and auditable. There is no reliance on field notes or memory.
• The data can be independently verified. A second expert can process the same raw point cloud and check the measurements.
• Visualisations are accessible to non-specialists. Judges and juries can navigate a 3D model intuitively, even without surveying expertise.

The integration of drone footage and laser scanning in expert witness building surveys has become standard practice in 2026, providing evidence that withstands cross-examination in defect and boundary litigation. [6]

Turning Land Registry Data into Compelling Court Evidence

One of the most powerful applications of LiDAR in boundary disputes is the ability to overlay current scan data against historical Land Registry title plans. Expert witness surveyors are increasingly using this technique to demonstrate, with millimeter-level precision, how a current site arrangement compares to the legal boundary as registered. [7]

The process typically involves:

1. Obtaining the registered title plan and any historical Ordnance Survey maps
2. Georeferencing the LiDAR point cloud to the same coordinate system
3. Generating a scaled overlay that shows any discrepancy between the legal boundary and physical features on the ground
4. Producing a formal expert report with annotated drawings and supporting data

This approach transforms what might otherwise be a subjective argument about fence positions into an objective, measurable analysis. [7]

Digital Time Capsules for Dilapidation and Party Wall Disputes

Beyond boundary lines, LiDAR scanning has a vital role in documenting pre-existing conditions before construction or excavation begins. A scan taken before work starts creates a digital time capsule — an irrefutable record of the property's condition at a specific point in time. [4]

If a neighbour later claims that construction caused cracking, subsidence, or encroachment, the pre-work scan provides an objective baseline for comparison. This is directly relevant to damage to property in party wall situations, where establishing what damage existed before work began is often the central question.

Similarly, a schedule of condition prepared using 3D laser scanning data is far more robust than one based on photographs and written notes alone. The scan captures every surface, angle, and dimension in a single, comprehensive dataset. [4]

Practical Advantages Over Traditional Methods in Complex Terrain

The accuracy advantage of LiDAR is most pronounced in exactly the conditions where traditional methods struggle most: complex terrain, dense vegetation, and urban environments with multiple overlapping structures.

Performance Comparison on Difficult Sites

Sloped ground: A total station survey on a steeply sloping boundary requires multiple instrument setups, each introducing error. A LiDAR scanner captures the entire slope in a single setup, producing a continuous, accurate surface model.

Overgrown boundaries: Hedgerows and dense vegetation obstruct optical instruments. LiDAR pulses penetrate vegetation gaps and return data from multiple surfaces simultaneously, allowing software to filter ground returns from vegetation returns — a process called last-return filtering.

Urban environments with built encroachments: Where extensions, outbuildings, or walls overlap the disputed boundary, a 3D scan captures the full geometry of every structure, allowing precise measurement of any encroachment in three dimensions.

Cost and time efficiency: The use of 3D scanning technology in construction monitoring and dispute resolution has demonstrated cost savings of 8-15% and schedule improvements of up to 25% compared to traditional methods. [3] Fewer site visits, faster data capture, and reduced re-measurement requirements all contribute to this efficiency.

Proactive Dispute Prevention

Perhaps the most significant shift enabled by LiDAR technology is the move from reactive to proactive dispute management. Rather than deploying scanning technology only after a dispute has arisen, forward-thinking property professionals are commissioning scans before any boundary-sensitive work begins. [3]

This approach — sometimes described as Virtual Design and Construction (VDC) coordination — means that potential conflicts are identified and resolved in the digital model before a single brick is laid or a fence post is moved. [3]

For anyone commissioning a structural survey or planning an extension near a boundary, requesting a LiDAR baseline scan as part of the pre-construction process is increasingly regarded as best practice in 2026.

Working with Chartered Surveyors on LiDAR-Based Boundary Surveys

Commissioning a LiDAR-based boundary survey is not simply a matter of hiring a company with the right equipment. The legal weight of the evidence depends heavily on the qualifications and independence of the surveyor producing it.

What to Look for in a Surveyor

RICS accreditation: A surveyor regulated by the Royal Institution of Chartered Surveyors (RICS) is bound by professional standards that courts recognise and respect. Understanding why to choose an RICS chartered building surveyor is especially important when the survey output may be used as legal evidence.

Expert witness experience: Not every chartered surveyor has experience preparing CPR Part 35-compliant reports. Confirm that the surveyor has acted as an expert witness in boundary or property disputes before.

Methodology transparency: The surveyor should be able to explain clearly how the point cloud data was collected, processed, and quality-checked. Any reputable firm will provide a detailed methodology statement alongside the survey deliverables.

3D deliverable capability: Confirm that the survey output includes not just 2D drawings but also the point cloud dataset, 3D model files, and any overlay comparisons required for legal proceedings. [2]

Integrating LiDAR with a Full Property Assessment

In many boundary disputes, the scanning survey is one component of a broader property assessment. A specific defect report may be required to document structural damage allegedly caused by a neighbour's works. A dilapidation survey may be needed to establish the condition of a property before or after a tenancy. In commercial contexts, a commercial building survey may incorporate LiDAR data to document boundary conditions and structural interfaces.

The key is to ensure that the LiDAR data is integrated into the broader evidence package in a coherent, legally structured way — not simply appended as a technical attachment that the court may struggle to interpret.

Costs and Timelines

LiDAR-based boundary surveys are more expensive than traditional measured surveys, but the cost differential has narrowed significantly as the technology has become more widely adopted. A typical residential boundary dispute survey using terrestrial laser scanning might cost between £1,500 and £5,000 depending on site complexity, the number of scan positions required, and the level of post-processing and reporting needed.

When weighed against the legal costs of a contested boundary dispute — which can easily exceed £30,000 per party — the investment in high-quality spatial evidence is almost always justified.

Conclusion

LiDAR and 3D Laser Scanning: Precision Tools for 2026 Property Boundary Disputes are no longer niche technologies reserved for large infrastructure projects. They are now accessible, cost-effective, and — critically — legally robust tools that any property owner or professional involved in a boundary dispute should understand and consider.

The comparison with traditional methods is not a close contest. Where tape measures and theodolites introduce cumulative error and produce static, two-dimensional outputs, LiDAR delivers sub-centimeter accuracy, comprehensive 3D datasets, and court-admissible evidence that can be re-examined and independently verified long after the site visit.

Actionable next steps for property owners and professionals:

• If a boundary dispute is emerging, commission a LiDAR baseline scan before any physical changes are made to the site.
• Engage an RICS-accredited chartered surveyor with demonstrable expert witness experience.
• Request that all survey deliverables include the raw point cloud dataset, not just processed drawings.
• Ensure any expert report is structured to comply with CPR Part 35 requirements from the outset.
• Consider a pre-construction LiDAR scan as standard practice before any boundary-adjacent development.

The precision these tools offer does not just resolve disputes more efficiently — it prevents many of them from escalating in the first place.
