BIM Integration for Land Surveyors: Bridging Geospatial Data and Construction Planning

Only 30% of construction projects are completed on time and within budget — and poor data coordination between surveyors, architects, and engineers is one of the leading culprits. BIM Integration for Land Surveyors: Bridging Geospatial Data and Construction Planning is the discipline that directly tackles this problem, connecting the precise spatial world of land surveying with the intelligent 3D modelling environment of Building Information Modelling (BIM).

In 2026, the pressure to deliver faster, smarter, and more cost-effective projects has never been greater. Surveyors who understand how to feed accurate geospatial data into BIM workflows are no longer just data collectors — they are strategic partners in the entire construction lifecycle.

Key Takeaways 📌

• BIM integration allows land surveyors to transform raw geospatial data into intelligent 3D models that architects and engineers can use directly.
• LiDAR scanning, drone mapping, and GIS platforms are the core technologies enabling seamless data transfer between the field and the model.
• Reducing design conflicts is one of the biggest financial benefits — catching clashes in the model costs far less than fixing them on site.
• Digital twins represent the next evolution, connecting live site data with BIM models for ongoing asset management.
• Collaboration protocols between surveyors, architects, and engineers must be established early to ensure data consistency throughout a project.

What Is BIM Integration for Land Surveyors?

Building Information Modelling (BIM) is a digital process that creates and manages information about a built asset. It is not just a 3D drawing — it is a rich data environment that stores geometry, materials, costs, schedules, and more.

For land surveyors, BIM integration means contributing precise, geo-referenced spatial data to this environment. Instead of handing over a flat drawing or a spreadsheet of coordinates, a surveyor feeds structured geospatial information directly into a shared model that the whole project team can interrogate.

💡 Pull Quote: "A surveyor's data is only as valuable as its ability to be used. BIM integration turns raw measurements into actionable intelligence for every stakeholder on a project."

Why Surveyors Are Central to the BIM Process

Surveyors establish the ground truth of any project. Before a single design decision is made, someone must accurately measure:

• Site boundaries and topography 🗺️
• Existing structures and utilities
• Soil conditions and drainage patterns
• Environmental constraints

Without this foundation, even the most sophisticated BIM model is built on assumptions. When surveyors engage with building surveys and structural assessments from the outset, they anchor the entire design process in verified reality.

Core Technologies Enabling BIM Integration for Land Surveyors: Bridging Geospatial Data and Construction Planning

1. 🛸 Drone and UAV Mapping

Unmanned Aerial Vehicles (UAVs) have transformed how surveyors capture site data. High-resolution aerial platforms produce geo-referenced orthomosaics, LiDAR point clouds, and 3D surface models that integrate directly with BIM and CAD workflows [2]. A drone survey that once took days on foot can now be completed in hours, with centimetre-level accuracy.

Key outputs from drone surveys include:

Providers like Flyover Drone Services deliver data layers including orthomosaics, LiDAR point clouds, and 3D models specifically formatted for BIM and as-built documentation [9].

2. 🔬 LiDAR Scanning and Point Clouds

LiDAR (Light Detection and Ranging) is arguably the most powerful tool in the modern surveyor's kit for BIM integration. It fires millions of laser pulses per second to create dense point clouds — three-dimensional maps of extraordinary detail.

These point clouds become the raw material for Scan-to-BIM workflows, where specialist software converts field measurements into structured BIM objects. End-to-end Scan-to-BIM services transform point cloud data into precise BIM models that enhance planning, design, and construction accuracy [7]. RMSI similarly uses LiDAR to deliver accurate map products applicable across urban planning, infrastructure assessment, and environmental monitoring [6].

For surveyors working on complex existing structures — such as those requiring a solid floor slab survey — LiDAR provides a level of detail that traditional measurement methods simply cannot match.

3. 🌍 GIS and Geospatial Platforms

Geographic Information Systems (GIS) manage spatial data at a scale that goes beyond individual buildings. They handle terrain models, utility networks, land use data, and environmental layers — all of which are critical inputs for construction planning.

Esri's ArcGIS GeoBIM is a leading platform that delivers a connected data environment, linking AEC (Architecture, Engineering, Construction) information in Autodesk Construction Cloud with geospatial data in ArcGIS [4]. This means a surveyor's GIS layers can be directly linked to the architect's Revit model, creating a single source of truth.

JES offers GIS services that integrate spatial data with LiDAR and BIM workflows, supporting clients from early feasibility through to long-term asset operations [1]. This lifecycle approach reflects how BIM integration is no longer just a design-phase activity — it is an ongoing asset management strategy.

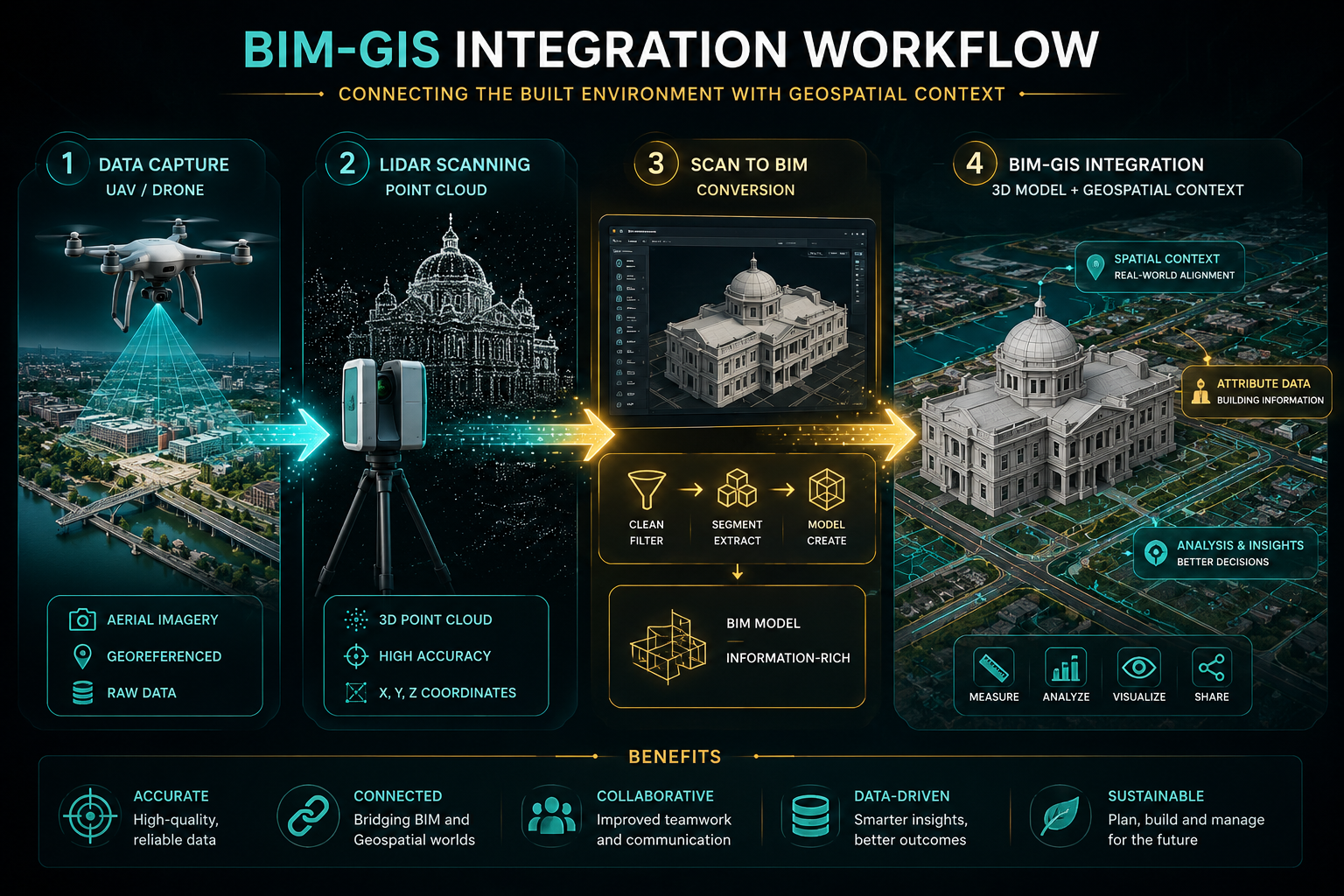

4. 📐 Scan-to-BIM Workflows

The Scan-to-BIM process is the critical bridge between field data and the design environment. The workflow typically follows these steps:

1. Field capture — LiDAR scanner or photogrammetry captures the site
2. Point cloud processing — Raw data is cleaned, registered, and geo-referenced
3. Modelling — Specialist software (Revit, ArchiCAD, Bentley) converts point clouds into BIM objects
4. Validation — The model is checked against survey tolerances
5. Delivery — The model is shared via a Common Data Environment (CDE)

How Surveyors Collaborate With Architects and Engineers

The real value of BIM Integration for Land Surveyors: Bridging Geospatial Data and Construction Planning is not in the technology itself — it is in the collaboration frameworks that technology enables.

Establishing a Common Data Environment (CDE)

A Common Data Environment is a shared digital space where all project information is stored, managed, and distributed. It is the backbone of any BIM project. Surveyors, architects, structural engineers, and MEP (Mechanical, Electrical, Plumbing) consultants all contribute to and draw from this environment.

For this to work, data standards must be agreed upon from day one:

• Coordinate reference systems — All parties must use the same grid and datum
• File formats — IFC (Industry Foundation Classes) is the open standard for BIM data exchange
• Level of Detail (LOD) — Survey data must meet the LOD requirements of the design stage
• Naming conventions — Consistent file naming prevents version confusion

Chartered surveyors working across regions — from chartered surveyors in West London to those covering chartered surveyors in Hertfordshire — increasingly encounter BIM requirements on both residential and commercial projects.

Clash Detection: Where Surveyors Save Money 💰

One of the most tangible benefits of BIM integration is clash detection — the automated process of identifying where different building elements conflict with each other in the model.

💡 Pull Quote: "Every clash resolved in the model rather than on site saves an estimated 10x the cost of correction. Accurate survey data is the first line of defence."

Common clashes that accurate survey data prevents:

• Structural vs. underground utilities — A foundation design that ignores a buried sewer
• Building footprint vs. boundary — A wall that encroaches on a neighbour's land
• Floor levels vs. drainage gradients — A slab level that makes drainage impossible

For projects involving party wall considerations, accurate survey data is especially critical. Understanding party wall excavation notices and how they relate to foundation design is a perfect example of where geospatial accuracy directly prevents legal and structural conflicts.

The Surveyor's Role at Each Project Stage

SAM's comprehensive geospatial services — spanning land surveying, aerial mapping, GIS, and BIM/3D laser scanning — demonstrate how a single firm can support a project across all these stages [5].

Digital Twins: The Future of BIM Integration for Land Surveyors: Bridging Geospatial Data and Construction Planning

The concept of the digital twin takes BIM integration to its logical conclusion. A digital twin is a live, continuously updated digital replica of a physical asset or environment. It connects 3D models, GIS data, IoT sensors, and asset information into a single interactive system [3].

For land surveyors, this represents a profound shift in role. Rather than delivering a one-time dataset at the start of a project, surveyors become ongoing data stewards — responsible for keeping the digital twin aligned with physical reality as the site evolves.

How Digital Twins Work in Practice

LandTech Consultants builds digital twins that transform complex sites into interactive systems improving planning, design, and operations [3]. Their approach integrates:

• 3D BIM models — The geometric framework
• GIS layers — The spatial context
• Asset information — Maintenance schedules, material specifications
• Live sensor data — Real-time monitoring of structural movement, temperature, or occupancy

This integration of 3D models with GIS and other operational systems creates a unified view of assets, enabling better coordination and informed decisions across departments [8].

Applications Across the Construction Lifecycle

Digital twins are not just for large infrastructure projects. They are increasingly used for:

• 🏗️ Commercial developments — Monitoring construction progress against the BIM programme
• 🏘️ Housing schemes — Managing phased delivery across large sites
• 🏛️ Heritage buildings — Recording and preserving complex existing structures
• 🛣️ Infrastructure — Managing roads, bridges, and utilities over decades

For surveyors involved in commercial property surveying, digital twin capabilities are rapidly becoming a competitive differentiator.

Practical Challenges and How to Overcome Them

Integrating geospatial data into BIM is not without its difficulties. Understanding the common obstacles helps teams plan more effectively.

⚠️ Challenge 1: Coordinate System Misalignment

Problem: Survey data uses real-world geographic coordinates (e.g., Ordnance Survey National Grid in the UK), while BIM models often use a local project coordinate system.

Solution: Establish a Survey Base Point and Project Base Point in the BIM model at project inception. Document the transformation parameters clearly in the BIM Execution Plan (BEP).

⚠️ Challenge 2: Data Format Incompatibility

Problem: Survey instruments output proprietary formats that BIM software cannot read directly.

Solution: Use IFC as the exchange format. Invest in middleware tools (e.g., Leica Cyclone, Trimble RealWorks) that convert point clouds and survey data into BIM-compatible formats.

⚠️ Challenge 3: Level of Detail Mismatch

Problem: Surveyors capture data at a higher resolution than the design team needs, creating unnecessarily large files. Or conversely, the survey LOD is insufficient for detailed design.

Solution: Agree on LOD specifications in the BIM Execution Plan before fieldwork begins. The surveyor should understand what the data will be used for at each design stage.

⚠️ Challenge 4: Skills Gap

Problem: Many experienced surveyors are highly skilled in traditional methods but have limited exposure to BIM software environments.

Solution: Invest in CPD (Continuing Professional Development) focused on BIM platforms. RICS-accredited training is available, and many firms now partner with BIM managers to bridge the gap. Surveyors seeking to understand how assessments align with BIM requirements can explore resources on RICS building surveys and Level 3 building surveys.

Standards and Compliance in 2026

The UK construction industry operates under ISO 19650, the international standard for managing information over the whole life cycle of a built asset using BIM. Compliance with this standard is increasingly required on public sector projects and is becoming the norm in commercial development.

Key requirements for surveyors under ISO 19650:

• Deliver data in agreed formats via the CDE
• Maintain clear version control and audit trails
• Provide metadata alongside geometric data
• Participate in model coordination meetings

Surveyors working on projects that require RICS valuations or structural engineering assessments will find that BIM-compliant data delivery is increasingly expected as part of the standard service offering.

Conclusion: Actionable Next Steps for Surveyors

BIM Integration for Land Surveyors: Bridging Geospatial Data and Construction Planning is not a distant future concept — it is the present reality of high-performing construction projects in 2026. Surveyors who embrace this integration become indispensable partners in delivering projects on time, within budget, and to the highest quality standards.

✅ Actionable Next Steps

1. Audit your current technology stack — Can your instruments and software output BIM-compatible data? If not, identify the gaps.
2. Learn the IFC standard — Understanding how data is exchanged in BIM environments is foundational knowledge for any surveyor.
3. Engage with BIM managers early — On any project with a BIM requirement, connect with the BIM manager before fieldwork begins to agree on coordinate systems, LOD, and file formats.
4. Invest in Scan-to-BIM capability — Whether in-house or through a specialist partner, this skill set is increasingly in demand.
5. Explore digital twin opportunities — Particularly for commercial and infrastructure clients, the ability to support ongoing asset management through live geospatial data is a significant value-add.
6. Stay current with RICS guidance — RICS continues to update its guidance on BIM and digital surveying. Maintaining RICS accreditation ensures alignment with industry standards.

The surveyor's role has always been to establish truth in a complex world. BIM integration simply gives that truth a more powerful voice across the entire construction process.
