Level 3 Building Surveys for Bungalows in Subsidence-Prone Areas: 2026 Regional Protocols

April 11, 2026

Bungalows account for approximately 9% of UK housing stock, yet they represent nearly 18% of all subsidence insurance claims filed in 2025—a disproportionate vulnerability driven by their unique structural characteristics and widespread construction on clay-rich soils. As we move into 2026, understanding the specialized protocols for Level 3 Building Surveys for Bungalows in Subsidence-Prone Areas: 2026 Regional Protocols has become essential for property buyers, owners, and professionals navigating these high-risk transactions.

The convergence of climate volatility, aging building stock, and evolving regulatory frameworks has created an urgent need for comprehensive assessment methodologies. Level 3 Building Surveys for Bungalows in Subsidence-Prone Areas: 2026 Regional Protocols address the specific vulnerabilities inherent to single-story dwellings, where shallow foundations, expansive roof structures, and concentrated load distribution create distinct failure patterns not seen in multi-story properties.

Key Takeaways

🏠 Bungalows face unique subsidence risks due to shallow foundations, wide roof spans, and concentrated structural loads that require specialized Level 3 survey protocols
📊 Regional variations matter significantly with clay-rich areas requiring enhanced monitoring protocols and soil-specific assessment criteria in 2026
🔍 Three critical risk factors dominate bungalow assessments: roof spread, differential settlement, and moisture-related foundation movement
📋 Enhanced checklists for 2026 incorporate real-time monitoring technology, seasonal movement tracking, and vegetation impact analysis
⚖️ Regulatory compliance now demands documented evidence of subsidence assessment in high-risk zones before mortgage approval

Understanding Level 3 Building Surveys and Bungalow Vulnerabilities

A Level 3 Building Survey represents the most comprehensive property inspection available, providing detailed analysis of structural condition, defects, and repair priorities. When applied to bungalows in subsidence-prone areas, these surveys must address architectural characteristics that amplify ground movement risks.

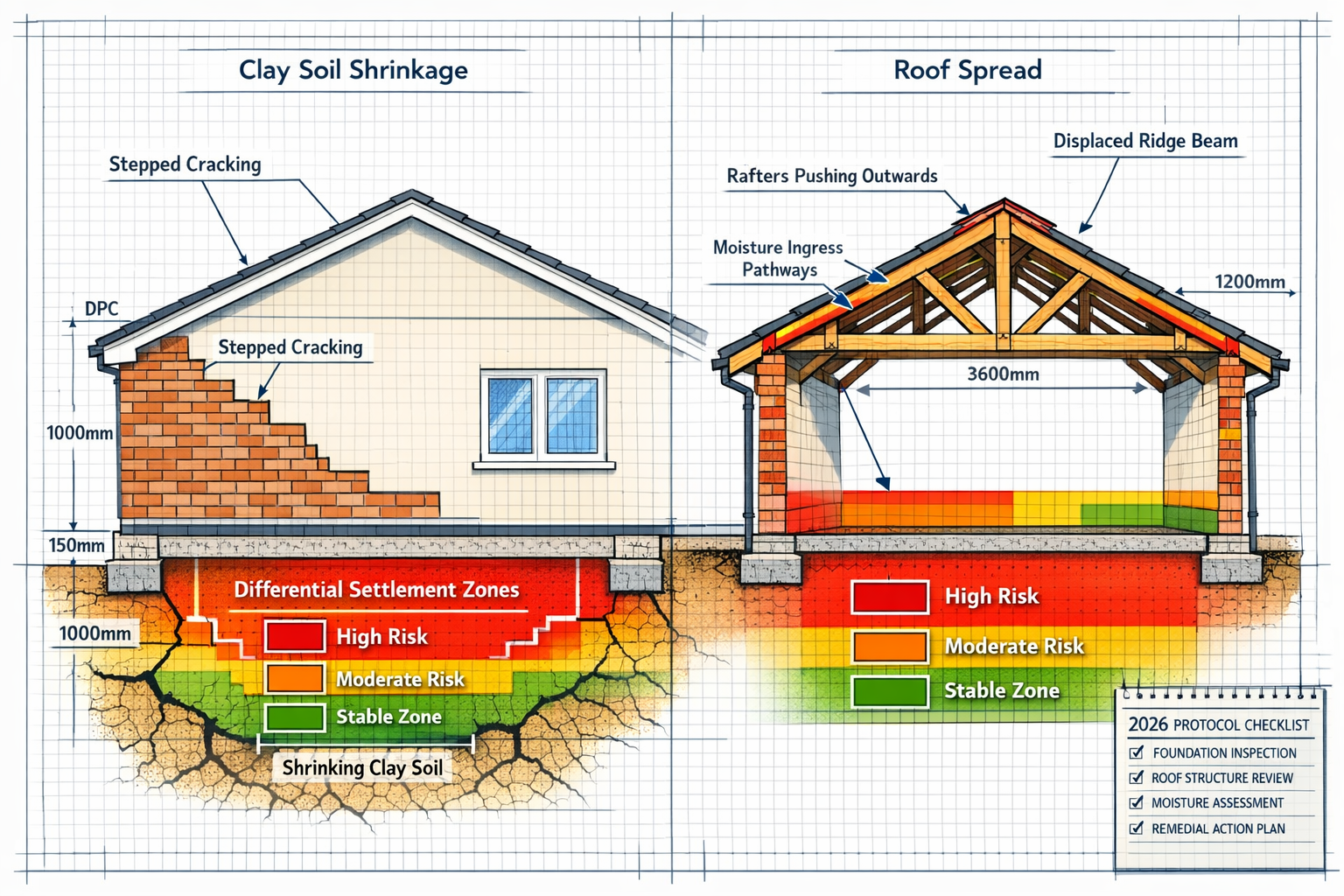

Why Bungalows Are Particularly Vulnerable

Single-story construction creates several structural challenges:

Foundation Loading Patterns: Unlike multi-story buildings where weight distribution occurs across multiple floors, bungalows concentrate all structural loads at foundation level. This creates higher bearing pressures on potentially unstable clay soils, accelerating differential settlement when moisture content changes.

Roof Spread Dynamics: Bungalows typically feature wide roof spans without intermediate support from upper-floor structures. The outward thrust from roof loads can push external walls outward, creating characteristic cracking patterns often mistaken for subsidence but requiring different remediation approaches.

Shallow Foundation Depth: Many bungalows built between 1920-1970 have foundations extending only 600-900mm below ground level—insufficient depth in clay soils that experience seasonal moisture variation to depths of 1.5-2.0 meters.

The 2026 Protocol Enhancement

Recent updates to RICS building survey standards have introduced region-specific requirements for subsidence assessment. These protocols acknowledge that ground conditions vary dramatically across UK regions, requiring tailored investigation approaches.

The 2026 protocols mandate:

Seasonal movement monitoring for properties in high-risk zones
Soil classification verification through trial pit investigation
Vegetation impact assessment within 30-meter radius
Drainage system integrity testing as standard procedure
Historical movement analysis using previous survey data where available

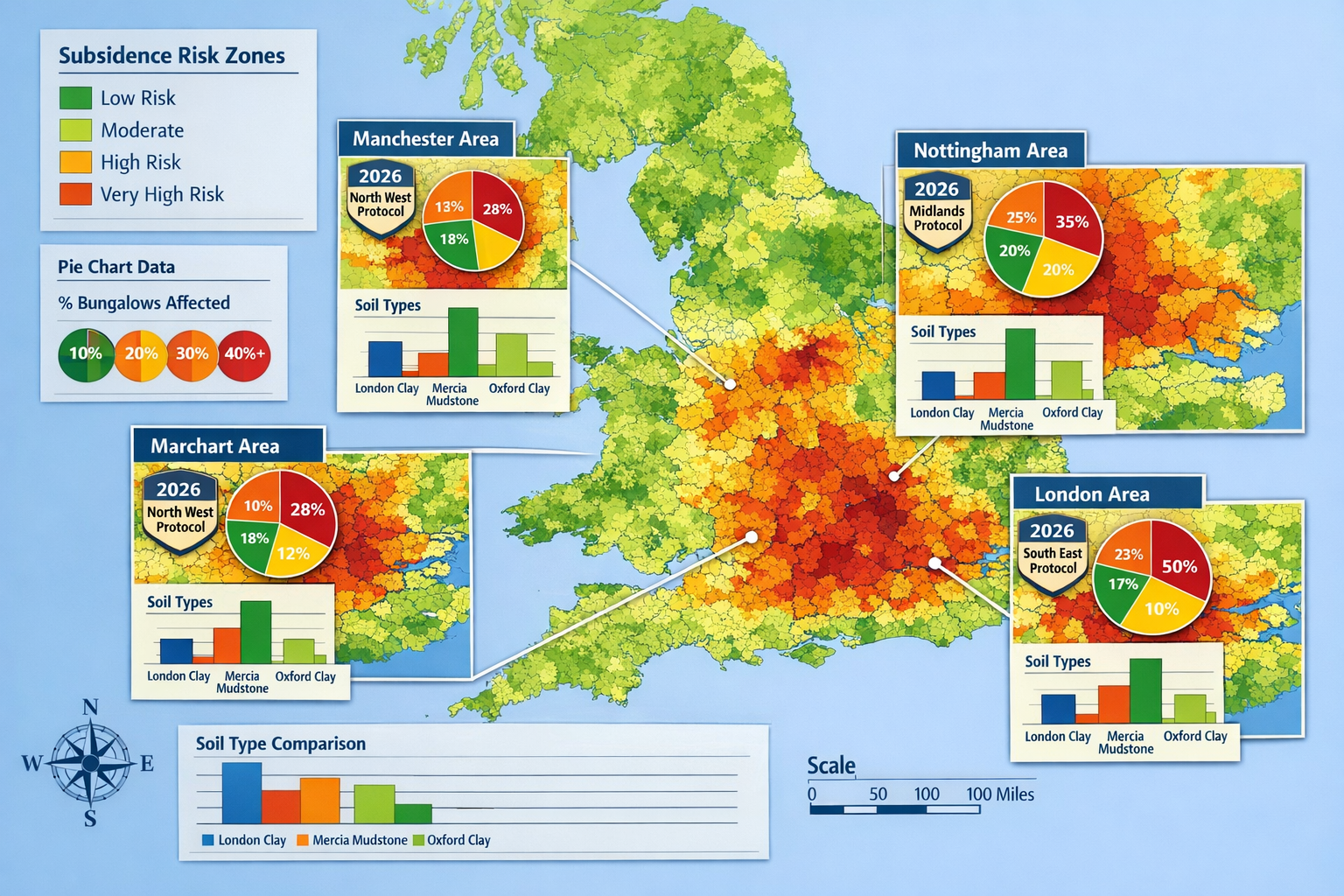

Regional Subsidence Risk Profiles: 2026 Assessment Criteria

Level 3 Building Surveys for Bungalows in Subsidence-Prone Areas: 2026 Regional Protocols recognize that subsidence risk varies significantly across UK regions based on underlying geology, climate patterns, and vegetation density.

High-Risk Clay Regions

Southeast England (London Clay Formation): This region experiences the highest subsidence claim frequency, with London Clay shrinking up to 15% in volume during drought conditions. Bungalows in areas including Essex, Kent, and Greater London require enhanced monitoring protocols.

The Midlands (Mercia Mudstone): Covering large portions of Nottinghamshire, Leicestershire, and Staffordshire, this clay-rich geology creates moderate to high subsidence risk. The 2026 protocols require specific attention to historical mining activity that may compound ground movement.

Northwest England: While generally lower risk, localized clay deposits in areas around Manchester and Liverpool create pockets of vulnerability requiring specialized subsidence surveys.

Risk Classification Matrix

Region	Soil Type	Risk Level	Mandatory Investigations
Southeast	London Clay	High	Trial pits, vegetation survey, seasonal monitoring
East Midlands	Mercia Mudstone	High	Drainage testing, foundation depth verification
Northwest	Boulder Clay	Moderate	Standard structural assessment, moisture testing
Southwest	Keuper Marl	Moderate-High	Tree root mapping, soil shrinkage analysis
Northeast	Glacial Till	Low-Moderate	Visual inspection, crack monitoring

Climate Impact Considerations

The 2026 protocols explicitly acknowledge climate change impacts on subsidence risk. Extended drought periods followed by intense rainfall create the most damaging soil movement cycles. Properties in traditionally moderate-risk areas are being reclassified as surveyors observe changing moisture patterns affecting foundation stability.

Temperature extremes recorded in 2024-2025 have accelerated soil desiccation rates, with some clay soils reaching critical shrinkage thresholds 6-8 weeks earlier in the year than historical averages. This seasonal shift requires adjusted monitoring schedules in Level 3 survey protocols.

Critical Assessment Points: The 2026 Level 3 Checklist for Bungalows

Conducting Level 3 Building Surveys for Bungalows in Subsidence-Prone Areas: 2026 Regional Protocols requires systematic evaluation of specific structural elements and environmental factors.

Foundation and Structural Movement Assessment

Crack Pattern Analysis: Surveyors must document crack width, orientation, and progression. Diagonal cracks wider than 3mm, particularly those showing stepped patterns through mortar joints, indicate potential subsidence. The 2026 protocols require photographic documentation with measurement scales and dating.

Floor Level Survey: Using laser levels or digital inclinometers, surveyors map floor plane variations. Deviations exceeding 15mm over 3 meters suggest differential settlement requiring investigation. Modern structural engineering assessment may involve creating 3D topographical maps of internal floor surfaces.

Door and Window Distortion: Frames that no longer close properly, showing gaps or binding, indicate structural movement. The 2026 checklist requires operational testing of all openings with documentation of clearance measurements.

Roof Structure Evaluation

Roof Spread Indicators: Wall plate separation from masonry, outward lean at eaves level, and ridge beam displacement all signal roof thrust problems. These issues affect approximately 40% of pre-1970 bungalows and require differentiation from subsidence-related movement.

Timber Condition Assessment: Roof surveys must evaluate structural timber for decay, insect infestation, and load-bearing capacity. Weakened roof structures exacerbate wall spreading, creating complex failure patterns.

Ceiling Crack Patterns: Cracks radiating from corners or running parallel to walls suggest roof movement rather than foundation settlement—a critical distinction affecting remediation strategy and cost.

Moisture and Drainage Investigation

Subsoil Drainage Adequacy: The 2026 protocols mandate assessment of surface water management. Poor drainage concentrates water near foundations, creating localized soil saturation that triggers clay expansion and subsequent settlement when drying occurs.

Rising Damp Indicators: Moisture penetration through foundations can signal drainage failure or defective damp-proof courses. Modern surveys incorporate thermal imaging and electronic moisture meters to map damp distribution patterns.

Vegetation Impact Analysis: Trees and large shrubs within 1.5 times their mature height from the property require documentation. Species identification matters—willows, poplars, and oak trees extract significantly more soil moisture than ornamental species, creating asymmetric foundation loading.

The Enhanced 2026 Bungalow Survey Checklist

✅ External Inspection

Foundation exposure (trial pit) in at least two locations
Crack width measurement with tell-tales or digital monitoring
Wall verticality check using plumb lines or laser
Gutter and downpipe condition and discharge points
Ground level relative to DPC verification
Vegetation species identification and proximity mapping

✅ Internal Inspection

Floor level survey across all rooms
Door and window operational testing
Ceiling and wall crack documentation
Moisture meter readings at multiple heights
Service pipe entry point inspection
Evidence of previous repair work

✅ Roof Space Investigation

Wall plate positioning and fixings
Timber condition and structural adequacy
Ridge beam alignment and support
Rafter spread or distortion
Evidence of roof covering defects
Insulation type and condition

✅ Drainage Assessment

Surface water disposal routes
Soakaway location and condition
Gully trap functionality
Evidence of ground saturation
Proximity to water-bearing services

✅ Environmental Factors

Soil type classification (visual/documented)
Local subsidence claim history research
Mining or ground instability records check
Flood risk assessment
Tree preservation order verification

Technology Integration in 2026 Surveys

Modern Level 3 surveys increasingly incorporate digital monitoring tools. Crack monitoring apps allow time-stamped measurement tracking, creating baseline data for future comparison. Thermal imaging reveals moisture patterns invisible to visual inspection, while laser scanning creates precise 3D models documenting structural geometry.

Some surveyors now deploy temporary monitoring equipment during the survey period, capturing data on temperature, humidity, and micro-movement that enhances risk assessment accuracy. This technology-enhanced approach aligns with broader industry trends toward evidence-based evaluation.

Interpreting Survey Results and Risk Categorization

Understanding the findings within Level 3 Building Surveys for Bungalows in Subsidence-Prone Areas: 2026 Regional Protocols requires familiarity with risk classification systems and their implications for property transactions.

The Three-Tier Risk Framework

Category 1 – Active Subsidence: Evidence of ongoing progressive movement requiring immediate investigation and likely remediation. Characteristics include:

Cracks widening over monitoring period
Fresh plaster fractures or recent paint splitting
Visible floor level changes
Recent door/window operational problems

Properties in this category typically require specialist structural surveys and may need underpinning or other foundation stabilization before mortgage approval.

Category 2 – Historical Movement (Stabilized): Evidence of past subsidence that has ceased, with no recent progression. Indicators include:

Old cracks with painted-over surfaces
Previous repair work evident
No recent movement on monitoring
Stable floor levels

These properties may be insurable with specialist providers but often require premium loading and monitoring conditions.

Category 3 – Preventable Risk: No current movement but environmental factors create future vulnerability. Examples include:

Large trees in close proximity
Poor drainage management
Shallow foundations in clay soil
No evidence of current distress

Proactive measures can mitigate risk before movement occurs, potentially avoiding costly future remediation.

Cost Implications and Remediation Strategies

Underpinning costs for bungalows typically range from £10,000-£50,000 depending on extent and access. The single-story construction often provides easier access than multi-story properties, potentially reducing costs, but the entire perimeter may require treatment due to uniform foundation depth.

Roof spread repairs involve installing restraint systems (steel ties, timber collars) costing £3,000-£8,000—significantly less than foundation work but requiring careful specification to avoid creating new stress points.

Drainage improvements represent cost-effective preventative measures, with comprehensive systems costing £2,000-£5,000 but potentially eliminating the underlying cause of soil moisture variation.

Insurance and Mortgage Considerations

Lenders increasingly require specific confirmation that subsidence risks have been assessed according to 2026 protocols. Properties in high-risk regions may face:

Specialist insurance requirements with subsidence excess of £1,000-£5,000
Mortgage valuation downgrades reflecting remediation costs
Retention of funds pending completion of recommended works
Monitoring conditions requiring follow-up surveys at 6-12 month intervals

Understanding these implications helps buyers make informed decisions about proceeding with purchases or renegotiating terms based on survey findings.

Professional Standards and Selecting Qualified Surveyors

The complexity of Level 3 Building Surveys for Bungalows in Subsidence-Prone Areas: 2026 Regional Protocols demands appropriately qualified professionals with specific expertise.

RICS Accreditation and Specialist Knowledge

Choosing an RICS Chartered Building Surveyor ensures adherence to professional standards and insurance-backed work. However, subsidence assessment requires additional specialization beyond general surveying qualifications.

Key qualifications to verify:

RICS membership (MRICS or FRICS designation)
Specific subsidence assessment experience
Local knowledge of regional soil conditions
Professional indemnity insurance adequate for property value
Membership in specialist subsidence assessment bodies

Regional Expertise Matters

A surveyor familiar with local geology and building practices provides more accurate risk assessment than generalists. Regional specialists understand:

Typical foundation construction methods used in local bungalow developments
Historical subsidence patterns in specific neighborhoods
Local clay soil behavior and seasonal movement cycles
Vegetation species common to the area and their moisture demands
Previous remediation approaches and their long-term effectiveness

The Survey Report: What to Expect

A comprehensive Level 3 survey report for a bungalow in a subsidence-prone area should include:

📄 Executive Summary: Clear risk categorization and priority recommendations

📄 Detailed Findings: Room-by-room condition assessment with photographic evidence

📄 Technical Analysis: Foundation assessment, structural movement evaluation, and cause identification

📄 Environmental Factors: Soil type, drainage assessment, vegetation impact analysis

📄 Repair Cost Estimates: Realistic budgets for recommended remediation works

📄 Monitoring Recommendations: Specific protocols for tracking any identified movement

📄 Insurance and Mortgage Implications: Clear guidance on likely lender and insurer responses

Reports typically run 40-80 pages for bungalows with identified concerns, providing comprehensive documentation supporting transaction decisions.

Survey Costs and Value Proposition

Level 3 surveys for bungalows typically cost £800-£1,500 depending on property size and regional rates. Enhanced subsidence investigation may add £200-£500 for trial pits, specialist testing, or extended monitoring periods.

While representing significant upfront cost, these surveys regularly identify issues that:

Save buyers £20,000-£100,000 in undiscovered remediation costs
Provide negotiating leverage for price reductions
Prevent mortgage refusal late in the transaction process
Offer peace of mind about structural integrity

The investment in proper assessment proves invaluable when dealing with properties in subsidence-prone regions.

Future-Proofing: Preventative Measures and Ongoing Monitoring

Beyond the initial survey, maintaining bungalow structural integrity in subsidence-prone areas requires proactive management aligned with 2026 protocol recommendations.

Vegetation Management Strategies

Tree removal considerations: While removing large trees eliminates moisture extraction, it can trigger "heave" as soil rehydrates and expands. The 2026 protocols recommend gradual crown reduction over 3-5 years rather than immediate felling, allowing soil moisture equilibrium to adjust gradually.

Planting restrictions: New trees should be planted at distances exceeding their mature height from the property. For bungalows, this often means 15-25 meters for large species, creating practical limitations in smaller gardens.

Root barrier installation: Modern polymer barriers can redirect root growth away from foundations, costing £500-£2,000 depending on length and depth required.

Drainage Enhancement

Soakaway adequacy: Many older bungalows have undersized or silted soakaways unable to handle modern rainfall intensity. Upgrading to contemporary standards costs £1,500-£3,500 but dramatically reduces foundation moisture variation.

Gutter and downpipe maintenance: Simple regular clearing prevents overflow that saturates ground adjacent to foundations—a primary trigger for localized subsidence.

French drains and land drainage: Where ground conditions create persistent saturation, perimeter drainage systems cost £3,000-£8,000 but provide long-term foundation protection.

Structural Monitoring Programs

For properties showing historical movement or elevated risk factors, ongoing monitoring provides early warning of renewed activity:

Tell-tale crack monitors: Simple glass or plastic devices cost £5-£15 each and show if cracks are widening. Strategic placement across key cracks creates a low-cost monitoring network.

Professional monitoring services: Annual or biannual professional inspections cost £200-£400 but provide documented evidence of stability valuable for insurance and resale purposes.

Digital monitoring systems: Advanced installations using electronic sensors and remote data transmission cost £1,000-£3,000 but provide continuous real-time movement data, enabling immediate response to concerning trends.

Insurance Optimization

Maintaining appropriate subsidence insurance requires:

Annual policy review ensuring coverage adequacy and competitive pricing
Documentation of preventative measures potentially reducing premiums
Prompt reporting of any new cracking or movement signs
Compliance with monitoring conditions imposed by insurers
Maintaining survey records demonstrating responsible property stewardship

Conclusion

Level 3 Building Surveys for Bungalows in Subsidence-Prone Areas: 2026 Regional Protocols represent a sophisticated response to the unique vulnerabilities facing single-story properties in geologically challenging locations. The disproportionate subsidence risk affecting bungalows—driven by shallow foundations, roof spread dynamics, and concentrated structural loading—demands specialized assessment approaches that go beyond standard survey methodologies.

The 2026 protocol enhancements acknowledge regional geological variations, requiring tailored investigation approaches for clay-rich Southeast England, Midlands mudstone regions, and other high-risk zones. By incorporating technology-enhanced monitoring, seasonal movement tracking, and comprehensive environmental assessment, these protocols provide the evidence base necessary for informed property decisions.

Key actions for property stakeholders:

🔍 For Buyers: Commission a Level 3 survey from a regionally experienced RICS surveyor before committing to purchase any bungalow in a subsidence-prone area. The investment regularly saves tens of thousands in undiscovered remediation costs.

🏠 For Owners: Implement preventative measures including drainage optimization, vegetation management, and regular monitoring. Proactive stewardship prevents minor concerns from escalating into major structural failures.

💼 For Professionals: Stay current with evolving regional protocols, invest in diagnostic technology, and maintain detailed documentation supporting risk assessments. Professional expertise in this specialized field commands premium fees reflecting the value provided.

The convergence of aging bungalow stock, climate volatility increasing soil movement, and enhanced regulatory scrutiny makes 2026 a pivotal year for subsidence assessment standards. Properties that receive comprehensive evaluation according to current protocols will enjoy enhanced marketability, insurance accessibility, and structural longevity.

Don't leave structural integrity to chance—get a quote for a comprehensive Level 3 survey tailored to your property's specific risk profile and regional requirements. Professional assessment provides the foundation for confident property ownership in subsidence-prone areas.
