The construction boom of 2026 has created an unprecedented demand for rapid, accurate land surveying—and traditional methods simply cannot keep pace. What once took surveying teams five days to map with total stations and GPS receivers can now be accomplished in just two hours with a drone equipped with Real-Time Kinematic (RTK) GPS technology. This transformation represents more than just a technological upgrade; it fundamentally reshapes how professionals approach boundary mapping, topographic surveys, and site documentation.

Drones in Land Surveying: Mastering UAV Photogrammetry for Faster, Cheaper Boundary Mapping in 2026 has evolved from an experimental technique to an industry standard, with UAV photogrammetry now delivering centimeter-accurate 3D models at a fraction of traditional costs. Survey-grade drones equipped with 61-megapixel cameras and RTK positioning systems can achieve absolute accuracy down to 1cm[4], making them suitable for legal boundary determinations, construction layout verification, and volumetric calculations that previously required expensive terrestrial equipment.

The financial implications are equally compelling. Where a traditional boundary survey might cost £3,000-£5,000 and require multiple site visits over several days, a drone-based approach can complete the same work for £1,200-£2,000 in a single afternoon—representing savings of 60-70% while actually improving data quality and comprehensiveness[2].

Key Takeaways

✅ RTK-equipped drones achieve 1cm absolute accuracy, matching or exceeding traditional surveying methods while reducing field time from days to hours[4]

✅ Cost reductions of 60-70% are typical when switching from ground-based surveying to UAV photogrammetry for boundary mapping and topographic surveys[2]

✅ High-resolution imaging with 61MP cameras enables detailed feature extraction, vegetation analysis, and infrastructure documentation from a single flight[4]

✅ Regulatory compliance in 2026 requires proper CAA certification, airspace authorization, and adherence to data protection standards for commercial surveying operations

✅ Real-world applications span construction monitoring, agricultural land assessment, environmental studies, and legal boundary documentation with measurable ROI

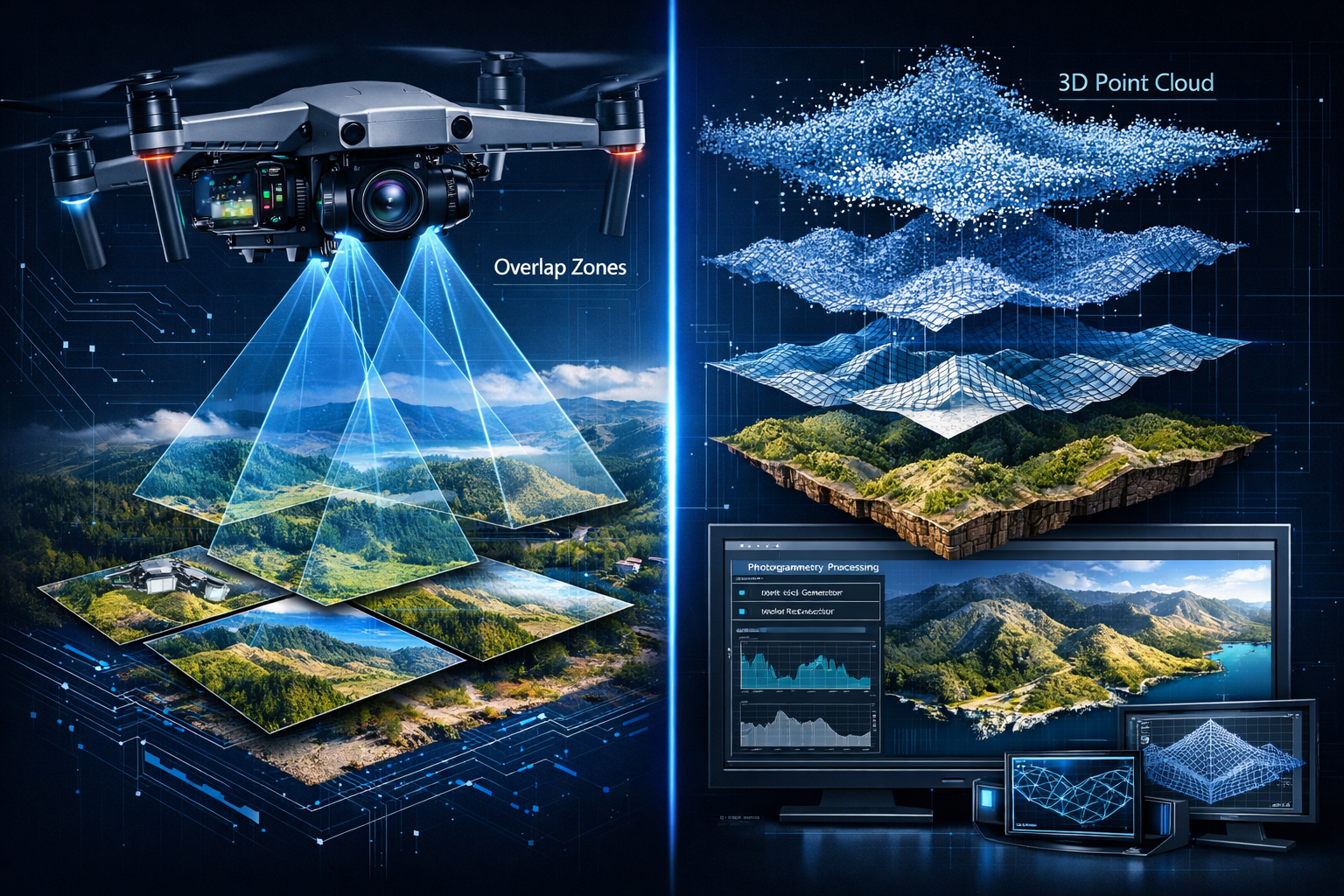

Understanding UAV Photogrammetry Technology in Modern Land Surveying

UAV photogrammetry represents the convergence of aerial imaging, computer vision, and geodetic positioning to create accurate three-dimensional representations of terrain and structures. At its core, the technology captures hundreds or thousands of overlapping photographs from different angles, which specialized software then processes to extract spatial information and generate deliverables including orthomosaic maps, digital elevation models (DEMs), and textured 3D meshes.

How Drone Photogrammetry Works: The Technical Foundation

The photogrammetric process begins with mission planning, where operators define the survey area, set flight altitude, and configure overlap parameters. Modern survey drones typically fly automated missions with 75-85% forward overlap and 65-75% side overlap[1], ensuring sufficient image redundancy for accurate reconstruction.

During flight, the drone's camera captures images at precisely timed intervals while onboard sensors record:

GPS/GNSS coordinates for each photo location
IMU data (pitch, roll, yaw) for camera orientation
Altitude information from barometric and radar sensors
RTK corrections (when equipped) for centimeter-level positioning

Processing these images involves several computational stages:

Image alignment and feature matching – Software identifies common points across overlapping photos
Sparse point cloud generation – Initial 3D reconstruction creates tie points
Dense point cloud creation – Detailed surface reconstruction with millions of points
Mesh generation – Triangulated surface connecting point cloud data
Texture mapping – Photographic detail applied to 3D geometry
Orthomosaic creation – Geometrically corrected aerial photograph
Classification and extraction – Identifying ground points, vegetation, structures

Professional structural surveys increasingly incorporate drone-derived data to complement traditional inspection methods, particularly for large commercial properties or sites with accessibility challenges.

RTK GPS Technology: The Accuracy Game-Changer

Real-Time Kinematic positioning represents the critical advancement that elevated drone surveying from approximate mapping to survey-grade precision. Traditional GPS provides accuracy within 3-5 meters—wholly inadequate for boundary determination or construction layout. RTK technology achieves centimeter-level accuracy by using correction data from a fixed base station or network of reference stations.

The RTK workflow operates as follows:

Base Station Setup: A GPS receiver at a known, surveyed location continuously receives satellite signals and calculates positioning errors caused by atmospheric interference, satellite orbit variations, and signal delays.

Correction Transmission: The base station broadcasts correction data via radio or cellular connection to the drone (rover) in real-time.

Differential Correction: The drone's GPS receiver applies these corrections to its own satellite observations, eliminating common errors and achieving horizontal accuracy of 1-2cm and vertical accuracy of 2-3cm[4].

This precision eliminates or significantly reduces the need for ground control points (GCPs)—surveyed markers traditionally required throughout the site to georeferenced drone imagery. While GCPs still provide valuable redundancy and verification, RTK-equipped drones can produce accurate results with minimal or no ground control, dramatically reducing field time.

Equipment Requirements and Specifications for 2026

The drone surveying market in 2026 offers equipment across three distinct tiers:

Entry-Level Survey Drones (£1,500-£5,000)

Consumer-grade GPS (3-5m accuracy)
12-20MP cameras
20-30 minute flight times
Suitable for visual documentation and approximate measurements
Requires extensive GCP networks for accuracy

Mid-Range Professional Systems (£5,000-£15,000)

RTK/PPK capability
20-48MP cameras with mechanical shutters
30-40 minute flight times
Interchangeable payload options
Appropriate for most boundary surveys and topographic mapping

Survey-Grade Platforms (£15,000-£45,000+)

Integrated RTK with multi-frequency GNSS
61MP full-frame cameras or LiDAR sensors
45+ minute flight times
Redundant systems and obstacle avoidance
Weather resistance and industrial build quality
Required for legal surveys and critical infrastructure

Advanced systems like the JOUAV CW-007 exemplify the current state-of-the-art, combining 1cm absolute accuracy with high-resolution imaging capabilities suitable for demanding applications[4]. These platforms integrate seamlessly with professional surveying workflows and produce data compatible with CAD and GIS software used by chartered surveyors.

Software Ecosystem: From Images to Deliverables

Photogrammetry software transforms raw imagery into actionable survey data. The 2026 market features several leading platforms:

Software	Strengths	Typical Use Cases	Price Range
Pix4Dmapper	Industry standard, robust processing	General surveying, construction	£2,800-£7,000/year
DroneDeploy	Cloud-based, user-friendly interface	Construction monitoring, agriculture	£2,400-£9,000/year
Agisoft Metashape	Powerful processing, academic pricing	Research, detailed modeling	£450-£2,800 (perpetual)
3Dsurvey	Excellent accuracy, streamlined workflow	Land surveying, cadastral mapping	£1,800-£5,500/year
RealityCapture	Fastest processing speeds	Large datasets, time-critical projects	£90-£180/month

Recent developments highlight 3Dsurvey as particularly well-suited for surveying applications in 2026[7], offering specialized tools for boundary extraction, contour generation, and volume calculations that integrate directly with traditional surveying software.

Processing requirements vary based on project size, but a typical 50-hectare boundary survey generating 800-1,000 images requires:

16-32GB RAM minimum (64GB recommended)
Dedicated GPU with 6GB+ VRAM
500GB-1TB SSD storage for active projects
Multi-core processor (8+ cores preferred)

Cloud processing services offer alternatives for firms without high-performance workstations, though data upload times and subscription costs must be factored into project economics.

Step-by-Step Implementation: Conducting Accurate Drone Surveys for Boundary Mapping

Executing a professional drone survey requires methodical planning, precise execution, and thorough quality control. The following workflow represents industry best practices for 2026, incorporating lessons learned from thousands of commercial projects and regulatory developments.

Phase 1: Pre-Flight Planning and Site Assessment

Successful surveys begin long before the drone takes flight. The planning phase establishes project parameters, identifies constraints, and ensures regulatory compliance.

Regulatory Compliance Check 🛂

In the UK, commercial drone operations require:

CAA Operational Authorization for specific work categories
A2 CofC (Certificate of Competence) for operators
Flyer ID and Operator ID registration
Airspace authorization if operating in controlled zones
Landowner permissions documented in writing
Privacy impact assessment for residential areas

The regulatory landscape has matured significantly, with streamlined digital authorization systems replacing paper-based processes. Most boundary surveys fall under standard operations requiring notification rather than specific authorization, but proximity to airports, helipads, or restricted zones necessitates advance clearance.

Site Analysis and Risk Assessment

Comprehensive site evaluation identifies potential hazards and operational constraints:

Obstacles: Power lines, towers, trees, buildings requiring buffer zones
Airspace restrictions: Controlled zones, temporary restrictions, military areas
Environmental factors: Weather patterns, seasonal vegetation, lighting conditions
Access limitations: Entry points, suitable GCP locations, base station placement
Electromagnetic interference: High-voltage lines, radio towers affecting GPS/RTK

Professional surveyors conducting commercial property surveying often integrate drone data with traditional techniques, requiring coordination between aerial and ground-based activities.

Mission Planning and Flight Design

Modern flight planning software automates much of the technical design, but operators must specify:

Flight Altitude: Determines ground sample distance (GSD)—the real-world size represented by each pixel. For boundary surveys requiring 2-3cm accuracy, typical altitudes range from 80-120 meters, producing GSD of 1.5-2.5cm/pixel[1].

Overlap Settings: Higher overlap improves reconstruction quality but increases image count and processing time. Standard settings:

Forward overlap: 80-85% for terrain mapping
Side overlap: 70-75% for adequate tie point density
Increased to 85-90% in areas with elevation changes or complex features

Flight Speed: Balanced against camera specifications to prevent motion blur. RTK systems enable faster flights (10-15 m/s) compared to non-RTK platforms requiring sharper images for accurate alignment.

Camera Settings: Manual configuration prevents mid-flight exposure changes that complicate processing:

ISO: 100-200 for minimal noise
Shutter speed: 1/1000s or faster to eliminate motion blur
Aperture: f/4-f/5.6 for optimal sharpness and depth of field
Focus: Locked at infinity for consistent image quality

Phase 2: Ground Control Point Establishment

While RTK technology reduces GCP requirements, strategic ground control placement provides essential quality assurance and enables verification of final accuracy.

GCP Quantity and Distribution

Current best practices for RTK-equipped drones recommend:

Minimum 3-5 GCPs even with RTK for verification
Additional checkpoints (not used in processing) for independent accuracy assessment
Perimeter placement around survey boundaries
Elevation distribution if terrain varies significantly

Non-RTK surveys require substantially more control:

8-12 GCPs for areas under 50 hectares
Additional 2-3 GCPs per 25 hectares for larger sites
Evenly distributed across the survey area
Visible in multiple images (minimum 3-5 photos per point)

GCP Marking and Surveying

Ground targets must be:

Highly visible from flight altitude (30-60cm diameter)
High contrast against background (orange/white checkerboards, crosses)
Flat and stable to prevent movement between flights
Photographed at ground level for identification during processing

Survey-grade GPS or total station equipment establishes GCP coordinates with sub-centimeter accuracy, typically requiring:

10-15 minute occupation per point for static GPS
RTK GPS observations with 3-5 minute averaging
Total station measurements tied to known control network

Professional firms offering RICS building surveys often maintain established control networks that drone surveys can reference, ensuring consistency across multiple assessment types.

Phase 3: Flight Execution and Data Capture

With planning complete and ground control established, flight operations proceed systematically to capture comprehensive imagery.

Pre-Flight Checklist ✈️

Battery charge verified (minimum 30% reserve)
Memory cards formatted and sufficient capacity
RTK connection established and confirmed
Home point recorded and verified
Weather conditions within operational limits (wind <10 m/s, no precipitation)
Airspace clearance confirmed
Safety observer positioned (if required)
Emergency procedures reviewed

Automated Flight Execution

Modern survey drones execute pre-programmed missions autonomously, with operators monitoring:

RTK fix status: Ensuring continuous centimeter-level positioning
Image capture confirmation: Verifying photos at planned intervals
Battery consumption: Tracking against flight plan estimates
Obstacle proximity: Monitoring for unexpected hazards
Data quality indicators: Checking exposure, focus, and coverage

Multi-battery missions require careful planning to ensure consistent overlap across flight segments. Advanced platforms support mission resume functionality, continuing from the last captured image after battery changes.

Oblique Imagery Capture

While nadir (straight-down) imagery forms the foundation of photogrammetric surveys, oblique photographs captured at 30-45° angles significantly improve:

Vertical surface reconstruction (building facades, retaining walls, steep slopes)
Feature recognition in dense vegetation or complex terrain
3D model quality by providing multiple viewing angles

Dedicated oblique missions or multi-camera systems capture these perspectives, particularly valuable for commercial building surveys requiring comprehensive documentation.

Phase 4: Data Processing and Quality Control

Raw imagery transforms into survey deliverables through systematic processing and rigorous quality verification.

Initial Processing Workflow

Image Import and Organization: Loading photos with GPS/RTK metadata
Camera Calibration: Determining lens distortion parameters
Image Alignment: Identifying tie points across overlapping photos
GCP Marking: Precisely identifying control points in images
Bundle Adjustment: Optimizing camera positions and orientations
Dense Reconstruction: Generating detailed point clouds
Mesh and Texture Creation: Building 3D surface models
Orthomosaic Generation: Creating geometrically corrected maps
DEM/DTM Production: Extracting elevation models

Processing a typical 50-hectare boundary survey with 800 images requires 4-8 hours on modern workstations, with variations based on hardware specifications and desired output resolution.

Accuracy Verification

Quality control involves statistical analysis of georeferencing accuracy:

Root Mean Square Error (RMSE) calculation comparing:

GCP coordinates (known) vs. computed positions (from processing)
Checkpoint coordinates vs. model-derived positions
Acceptable thresholds: <2cm horizontal, <3cm vertical for survey-grade work[1]

Point Cloud Density Assessment:

Minimum 50-100 points per square meter for boundary surveys
Higher density (200-500 points/m²) for detailed feature extraction
Consistent coverage without gaps or artifacts

Visual Inspection:

Orthomosaic clarity and seamless blending
3D model completeness and geometric accuracy
Absence of distortions, warping, or misalignments

Phase 5: Deliverable Creation and Documentation

Final outputs must meet client specifications and professional surveying standards.

Standard Deliverables Package

📊 Orthomosaic Map: Georeferenced aerial photograph with uniform scale, typically delivered as GeoTIFF with coordinate system specified by client (British National Grid, WGS84, etc.)

📐 Digital Terrain Model (DTM): Bare-earth elevation model with vegetation and structures removed, essential for drainage analysis and earthwork calculations

🏔️ Digital Surface Model (DSM): Elevation model including all features (trees, buildings, infrastructure)

☁️ Classified Point Cloud: 3D points categorized by feature type (ground, vegetation, buildings, water) in LAS/LAZ format

📏 Contour Lines: Elevation contours at specified intervals (0.25m, 0.5m, 1m) in CAD-compatible format

📋 Survey Report: Technical documentation including accuracy statements, methodology, coordinate systems, and limitations

Specialized Boundary Mapping Outputs

For legal boundary determination and property surveys:

Boundary line extraction overlaid on orthomosaic
Area calculations with precision statements
Corner coordinate schedules in required datum
Comparison analysis against title documents or previous surveys
Monumentation documentation photographically recording markers

These outputs integrate with traditional RICS valuations and property assessments, providing comprehensive spatial documentation.

Cost Analysis and ROI: Real Numbers from 2026 Drone Surveying Projects

Understanding the true economics of Drones in Land Surveying: Mastering UAV Photogrammetry for Faster, Cheaper Boundary Mapping in 2026 requires examining both direct costs and broader operational impacts. The financial case extends beyond simple equipment comparisons to encompass labor efficiency, project timelines, and competitive positioning.

Equipment Investment Breakdown

Initial Capital Requirements

Starting a professional drone surveying operation in 2026 requires investment across several categories:

Equipment Category	Entry-Level	Professional	Survey-Grade
Drone Platform	£2,500-£4,000	£8,000-£12,000	£18,000-£35,000
Additional Batteries	£400-£600	£800-£1,200	£1,500-£2,500
RTK Base Station	N/A	£2,500-£4,000	Included/£5,000
Processing Software	£450-£900/yr	£2,500-£5,000/yr	£4,000-£7,000/yr
Ground Control Equipment	£800-£1,500	£3,000-£6,000	£8,000-£15,000
Accessories & Spares	£500-£800	£1,200-£2,000	£2,500-£4,000
Training & Certification	£1,200-£2,000	£2,500-£4,000	£4,000-£6,000
Insurance (annual)	£800-£1,500	£2,000-£3,500	£3,500-£6,000
TOTAL (First Year)	£6,650-£11,300	£22,500-£37,700	£41,500-£80,500

Professional-tier equipment represents the optimal entry point for established surveying firms, offering survey-grade accuracy at manageable investment levels. The platform pays for itself after 15-25 boundary surveys compared to outsourcing or traditional methods.

Ongoing Operational Costs

Annual expenses beyond initial investment include:

Software subscriptions: £2,500-£7,000
Insurance renewals: £2,000-£6,000
Equipment maintenance: £800-£2,500
Battery replacements: £400-£1,200 (every 200-300 cycles)
Continuing education: £500-£1,500
Regulatory compliance: £200-£500

Project-Level Cost Comparison

Traditional vs. Drone Survey Economics

A representative 25-hectare boundary survey illustrates the dramatic cost differential:

Traditional Ground Survey Method:

Personnel: 2-3 surveyors × 3-5 days = £3,500-£6,000 (labor)
Equipment: Total station/GPS rental = £400-£800
Travel: Multiple site visits = £200-£400
Processing: CAD drafting and report = £800-£1,200
TOTAL PROJECT COST: £4,900-£8,400
Timeline: 5-7 working days

Drone Photogrammetry Method:

Personnel: 1 operator × 0.5 days field + 1 day processing = £800-£1,200
Equipment: Drone operation (amortized) = £150-£300
Travel: Single site visit = £50-£100
Processing: Software and computing = £100-£200
TOTAL PROJECT COST: £1,100-£1,800
Timeline: 1.5-2 working days

Savings: £3,800-£6,600 per project (65-78% reduction)
Time Savings: 3.5-5 days (70% faster delivery)

These economics explain why drone surveying has become standard practice for commercial property surveying firms seeking competitive advantages in 2026's fast-paced construction market.

Return on Investment Analysis

Break-Even Calculations

For a mid-range professional system (£25,000 initial investment, £5,000 annual operating costs):

Scenario 1: Dedicated Drone Surveying Service

Average project fee: £1,800
Direct costs per project: £350
Net profit per project: £1,450
Break-even point: 18 projects
Typical timeline: 6-9 months for active firms

Scenario 2: Supplementing Traditional Services

Cost savings vs. traditional methods: £4,500/project
Additional revenue from expanded capabilities: £800/project
Combined benefit: £5,300/project
Break-even point: 5 projects
Typical timeline: 2-4 months

Revenue Enhancement Opportunities

Beyond direct cost savings, drone capabilities enable:

Expanded Service Offerings 💼

Construction progress monitoring (monthly retainers £800-£2,500)
Volumetric stockpile measurements (£400-£1,200 per site)
Infrastructure inspection and documentation (£1,500-£4,000)
Agricultural land assessment (£600-£1,800)
Environmental monitoring (£1,200-£3,500)

Competitive Differentiation

Faster turnaround times winning time-sensitive projects
Comprehensive 3D deliverables exceeding client expectations
Visual documentation enhancing proposal quality
Technology leadership positioning for premium pricing

Operational Efficiency Gains

Reduced field time allowing more projects per week
Single-operator capability vs. multi-person crews
Weather flexibility (quick deployment during suitable conditions)
Safer data collection eliminating hazardous access requirements

Firms integrating drone capabilities with traditional structural engineering services report 25-40% revenue increases within the first year, primarily from expanded service capacity rather than price increases.

Hidden Costs and Considerations

Realistic Financial Planning

While the economic case is compelling, successful implementation requires acknowledging less obvious expenses:

Learning Curve Impacts

Initial projects take 2-3× longer during skill development
Processing errors requiring re-flights (10-15% of early projects)
Software proficiency development (40-60 hours)
Workflow optimization period (3-6 months)

Technology Refresh Cycles

Drone platforms: 3-5 year replacement cycle
Battery degradation: 18-24 month replacement
Software updates: Annual subscription increases (5-10%)
Computing hardware: 4-6 year upgrade requirements

Regulatory Compliance Burden

Ongoing training requirements (annual refreshers)
Airspace authorization delays (1-7 days for complex areas)
Documentation and record-keeping overhead
Insurance premium variations based on claims history

Weather Dependency

20-30% of scheduled flights postponed due to conditions
Seasonal variations affecting productivity
Project timeline buffers required
Client expectation management

Despite these considerations, the overwhelming majority of surveying firms report strong positive ROI from drone integration, with payback periods substantially shorter than alternative technology investments.

Real-World Applications: Construction Monitoring, Agriculture, and Beyond

The versatility of Drones in Land Surveying: Mastering UAV Photogrammetry for Faster, Cheaper Boundary Mapping in 2026 extends far beyond traditional boundary determination. Modern UAV photogrammetry serves diverse industries with applications that leverage the technology's unique combination of speed, accuracy, and comprehensive documentation.

Construction Site Monitoring and Progress Tracking

The construction industry represents the largest commercial market for drone surveying services, driven by project complexity, tight timelines, and significant financial stakes in accurate progress assessment.

Earthwork and Grading Verification 🏗️

Construction projects begin with site preparation involving substantial earth movement. Drone surveys provide:

Cut-Fill Analysis: Comparing existing terrain against design grades to calculate:

Volume of material to be excavated (cut)
Volume of fill material required
Optimal haul routes and staging areas
Cost implications of design modifications

Monthly or weekly surveys during earthwork phases enable real-time quantity tracking, ensuring contractors receive accurate payment for work completed and identifying discrepancies before they compound. A typical commercial development site (10 hectares) can be surveyed and analyzed in 3-4 hours versus 2-3 days for traditional cross-section methods[1].

Foundation and Structural Progress Documentation

As construction advances, drone surveys capture:

As-built verification against architectural and engineering plans
Elevation checks for foundation levels and floor heights
Dimensional accuracy of structural elements
Photographic records documenting construction sequence

This documentation proves invaluable for dispute resolution, quality assurance, and coordination between trades. Integration with Building Information Modeling (BIM) enables automated progress tracking, comparing 3D reality capture against design models to identify deviations requiring correction.

Safety and Site Management

Aerial perspectives reveal safety hazards and logistical inefficiencies invisible from ground level:

Unauthorized access points requiring securing
Material storage blocking emergency routes
Erosion control measure effectiveness
Traffic flow bottlenecks and staging optimization

Regular drone surveys support project management functions by providing objective visual records accessible to all stakeholders, reducing site visits required for remote owners, lenders, and oversight authorities.

Agricultural Land Assessment and Precision Farming

Agricultural applications leverage drone surveying's ability to rapidly assess large areas with detail impossible through traditional methods or satellite imagery.

Boundary and Parcel Mapping

Agricultural properties often encompass hundreds of hectares with boundaries defined by historical surveys of varying quality. Drone photogrammetry provides:

Accurate acreage calculations for subsidy applications and land valuations
Field boundary documentation for crop rotation planning
Drainage pattern analysis identifying waterlogged areas
Access route mapping for equipment and harvest logistics

The cost-effectiveness of drone surveys makes annual updates practical, tracking boundary changes from erosion, encroachment, or intentional modifications.

Topographic Analysis for Irrigation and Drainage

Detailed elevation models reveal subtle terrain variations affecting water management:

Slope analysis identifying areas requiring drainage improvements
Watershed delineation for irrigation system design
Erosion risk assessment highlighting vulnerable areas
Pond and reservoir volume calculations for water storage planning

Precision agriculture operations use this data to implement variable rate applications, adjusting seed density, fertilizer, and irrigation based on topographic position and resulting soil moisture patterns.

Vegetation Health and Crop Monitoring

While specialized multispectral sensors provide superior crop health analysis, standard RGB cameras capture valuable information:

Stand establishment assessment after planting
Growth uniformity identification of underperforming areas
Weed pressure mapping for targeted treatment
Harvest readiness evaluation across large fields

Combined with elevation data, vegetation analysis reveals correlations between topography, drainage, and crop performance, informing management decisions for subsequent seasons.

Environmental Monitoring and Conservation

Environmental applications demand the non-invasive data collection that drone surveying inherently provides, minimizing disturbance while documenting sensitive ecosystems.

Habitat Mapping and Wildlife Management

Conservation organizations and land managers use drone surveys for:

Vegetation community mapping with species-level detail in some cases
Wetland boundary delineation for regulatory compliance
Erosion monitoring along waterways and coastlines
Wildlife population estimation through image analysis

The ability to survey inaccessible areas—steep slopes, dense vegetation, wetlands—without ground disturbance makes drones ideal for baseline documentation and long-term monitoring programs.

Archaeological and Heritage Site Documentation 🏛️

LiDAR-equipped drones have revolutionized archaeology by penetrating vegetation canopies to reveal ground surface features invisible through conventional photography[2]. Applications include:

Site discovery identifying previously unknown archaeological features
Detailed documentation of excavations and artifacts in situ
3D modeling of structures and monuments for preservation
Change detection monitoring deterioration or damage

The combination of speed and detail enables comprehensive documentation that would require months or years through traditional surveying, preserving digital records of sites threatened by development, climate change, or natural deterioration.

Infrastructure Inspection and Asset Management

Transportation authorities, utilities, and facility managers increasingly rely on drone surveys for infrastructure assessment and maintenance planning.

Transportation Corridor Mapping

Roads, railways, and utility corridors spanning kilometers benefit from efficient aerial documentation:

Pavement condition assessment identifying cracking, rutting, and failures
Right-of-way encroachment detection and vegetation management
Drainage structure inventory and condition evaluation
Accident scene documentation for investigation and reconstruction

The speed of deployment makes drones particularly valuable for emergency response, documenting storm damage, landslides, or accidents without lane closures or extended traffic disruption.

Bridge and Structure Inspection

While detailed structural inspection still requires close visual examination, drone surveys provide:

Overall condition documentation identifying areas requiring detailed inspection
Access planning for rope access or scaffolding deployment
Dimensional verification for load rating calculations
Thermal imaging detecting concrete delamination or moisture intrusion

Integration with structural surveys enhances inspection efficiency by focusing expensive hands-on assessment on areas identified through preliminary drone reconnaissance.

Utility Corridor Management

Electric transmission, pipelines, and telecommunications infrastructure extend across vast areas requiring regular inspection:

Vegetation encroachment monitoring for clearance compliance
Tower and pole condition assessment identifying corrosion or damage
Thermal anomaly detection revealing electrical issues before failure
Construction impact assessment documenting third-party activities near infrastructure

The cost-effectiveness of drone inspection enables more frequent monitoring compared to helicopter or ground-based methods, shifting from reactive maintenance to predictive asset management[2].

Urban Planning and Development

Municipal planning departments and developers utilize drone surveys for comprehensive site analysis and public engagement.

Master Planning and Site Selection

Large-scale development projects require detailed understanding of existing conditions:

Topographic constraints affecting layout and grading costs
Existing infrastructure integration and utility coordination
Environmental features requiring preservation or mitigation
Adjacent property impacts viewshed and shadow analysis

High-resolution orthomosaics and 3D models support public consultation processes, enabling stakeholders to visualize proposed developments in accurate context.

Zoning and Code Enforcement

Municipal authorities use drone surveys for:

Building height verification against zoning restrictions
Impervious surface calculations for stormwater management
Setback compliance verification
Unauthorized construction detection and documentation

The objective, comprehensive documentation provided by georeferenced imagery and 3D models supports enforcement actions while reducing disputes over measurements and interpretations.

These diverse applications demonstrate that mastering Drones in Land Surveying: Mastering UAV Photogrammetry for Faster, Cheaper Boundary Mapping in 2026 opens opportunities far beyond traditional surveying services, positioning firms to serve expanding markets with technology-enabled capabilities.

Regulatory Compliance and Best Practices for 2026

Operating drones commercially for surveying purposes requires navigating a complex regulatory environment that balances innovation enablement with safety, privacy, and security concerns. The 2026 regulatory landscape reflects maturation of drone technology and integration into mainstream commercial operations.

UK Civil Aviation Authority (CAA) Requirements

Operator and Pilot Certification

Commercial drone operations in the UK operate under the UK Drone Code and CAA regulations aligned with European Union Aviation Safety Agency (EASA) standards:

Operator Registration

Flyer ID: Required for anyone operating drones 250g or heavier
Operator ID: Required for organizations conducting commercial operations
Annual renewal with current insurance documentation
Online registration via CAA portal (£10.33 annual fee)

Pilot Competency

A2 Certificate of Competency (CofC): Required for commercial operations in most scenarios
Theory examination covering aviation law, meteorology, flight performance, and operational procedures
Practical flight assessment demonstrating proficiency
Valid for 5 years with continuing education requirements

Operational Authorization

Standard scenarios: Pre-defined operations requiring notification only
Specific scenarios: Operations requiring individual risk assessment and CAA approval
LUC (Light UAS Operator Certificate): For complex or higher-risk operations
Processing times: 24 hours (standard) to 8 weeks (complex authorizations)

Airspace Management and Flight Restrictions

Controlled Airspace Coordination ✈️

The UK's Electronic Conspicuity and Surveillance mandate requires:

Remote ID transmission for drones over 250g (phased implementation 2024-2027)
Airspace authorization through digital platforms (NATS Drone Assist, Altitude Angel)
Real-time tracking for operations in certain areas
Automated deconfliction with manned aviation

Survey operations near airports, helipads, or in controlled airspace require:

Advance notification (minimum 24 hours, often 5-7 days)
Altitude restrictions typically limiting operations to 50-100m
Temporal restrictions during peak aviation activity
Observer requirements maintaining visual contact with airspace

Restricted and Sensitive Areas

Certain locations prohibit or severely restrict drone operations:

Prison facilities: Typically 1km exclusion zones
Military installations: Variable restrictions, often total prohibition
Royal residences: Extensive restricted areas
Critical infrastructure: Power stations, water treatment, government facilities
Temporary restrictions: Events, emergencies, VIP movements

Professional surveying firms maintain current airspace databases and verification procedures, as restrictions change frequently and violations carry significant penalties (unlimited fines, equipment seizure, criminal prosecution).

Data Protection and Privacy Compliance

GDPR and Privacy Considerations

Drone surveys capturing imagery of residential properties or public spaces trigger data protection obligations under UK GDPR:

Privacy Impact Assessments
Required when surveys will capture:

Residential properties with identifiable individuals
Private gardens and outdoor spaces
Schools, healthcare facilities, or sensitive locations
Public areas with significant pedestrian activity

Assessments document:

Legitimate interest justifying data collection
Minimization measures limiting unnecessary personal data capture
Security controls protecting collected information
Retention policies and deletion schedules

Notification and Consent

Best practices include:

Advance notification to affected property owners (7-14 days)
Visible signage during flight operations
Contact information for privacy concerns or objections
Opt-out procedures for individuals requesting exclusion

While legal requirements vary based on specific circumstances, proactive transparency reduces complaints and demonstrates professional responsibility.

Data Security and Retention

Survey data often contains sensitive information requiring:

Encryption of stored imagery and deliverables
Access controls limiting personnel with data access
Secure transmission protocols for client delivery
Documented retention and deletion procedures
Backup security preventing unauthorized access to archives

Professional indemnity insurance increasingly requires documented cybersecurity policies addressing drone-collected data, recognizing the sensitive nature of detailed property imagery.

Professional Standards and Quality Assurance

RICS Guidance and Industry Standards

While the Royal Institution of Chartered Surveyors (RICS) has not established dedicated drone surveying standards, existing guidance applies:

Accuracy Requirements

Survey deliverables must meet fitness for purpose standards
Accuracy statements required in all reports
Independent verification through checkpoints
Documentation of limitations and uncertainties

Professional Competence

Operators must maintain competence through continuing professional development
Supervision requirements for less experienced personnel
Quality management systems for consistent deliverables
Professional indemnity insurance with adequate coverage limits

Firms conducting RICS commercial building surveys integrate drone data within established quality frameworks, ensuring aerial-derived information meets the same standards as traditional survey methods.

Insurance and Liability Management

Coverage Requirements 📋

Commercial drone operations require specialized insurance policies:

Public Liability Insurance

Minimum £1 million coverage (often £5-10 million for commercial work)
Coverage for property damage and personal injury
Geographic limitations (UK only vs. international coverage)
Exclusions for intentional violations or gross negligence

Equipment Insurance

Hull coverage for drone damage or loss
Theft protection (with security requirement compliance)
Battery and accessory coverage
Replacement cost vs. actual cash value policies

Professional Indemnity

Coverage for errors in survey deliverables
Protection against negligence claims
Data breach and cyber liability extensions
Defense cost coverage separate from policy limits

Annual premiums vary significantly based on:

Equipment values (£2,000-£6,000 for professional systems)
Coverage limits (£800-£1,500 for £1M liability, £2,500-£5,000 for £10M)
Claims history and risk management practices
Operational scope and geographic coverage

Best Practices for Risk Management

Operational Safety Protocols

Professional drone surveying operations implement systematic risk management:

Pre-Flight Risk Assessment

Site-specific hazard identification
Weather evaluation against operational limits
Airspace verification and authorization confirmation
Emergency procedure review and communication plan

Flight Operations

Visual observers for operations beyond visual line of sight or in complex environments
Checklists ensuring consistent pre-flight verification
Altitude buffers maintaining safe clearance from obstacles
Battery management landing with minimum 20-30% reserve

Post-Flight Procedures

Equipment inspection for damage or wear
Data backup and verification
Flight log documentation
Incident reporting (even minor occurrences)

Continuing Education and Skill Development

The rapid evolution of drone technology and regulations requires ongoing professional development:

Annual regulatory updates and compliance training
Software proficiency advancement (new features, techniques)
Industry conferences and networking (sharing lessons learned)
Manufacturer training on new equipment and capabilities

Organizations offering project management services increasingly require drone operation capabilities, making continuing competence essential for career advancement and competitive positioning.

Mastering the regulatory environment represents as significant a component of Drones in Land Surveying: Mastering UAV Photogrammetry for Faster, Cheaper Boundary Mapping in 2026 as technical proficiency with equipment and software. Firms that establish robust compliance frameworks position themselves for sustainable growth while those treating regulations as obstacles face increasing operational restrictions and liability exposure.

Conclusion: Implementing Drone Surveying for Competitive Advantage

The transformation of land surveying through UAV photogrammetry represents more than incremental improvement—it fundamentally reshapes what's possible in terms of speed, accuracy, comprehensiveness, and cost-effectiveness. As demonstrated throughout this exploration of Drones in Land Surveying: Mastering UAV Photogrammetry for Faster, Cheaper Boundary Mapping in 2026, the technology has matured from experimental novelty to essential professional capability.

Key Success Factors for Implementation

Organizations successfully integrating drone surveying share common characteristics:

Strategic Technology Selection 🎯

Rather than pursuing the most advanced (and expensive) equipment, successful firms match capabilities to actual requirements. A £12,000 RTK-equipped platform serves most boundary surveying needs as effectively as £35,000 flagship models, with the cost differential better invested in software, training, and marketing.

Systematic Skill Development

Technical proficiency develops through deliberate practice and structured learning:

Begin with simple projects building confidence and workflow familiarity
Progress to complex scenarios as competence increases
Document lessons learned and refine procedures
Invest in formal training rather than relying solely on self-teaching

Integration with Existing Services

The greatest value emerges when drone capabilities enhance rather than replace traditional surveying methods. Combining aerial photogrammetry with selective ground verification produces superior results to either approach alone, while expanding service offerings to include construction monitoring, volumetric analysis, and infrastructure inspection creates new revenue streams.

Client Education and Expectation Management

Many clients lack understanding of drone surveying capabilities and limitations. Proactive education about:

Accuracy levels achievable under various conditions
Weather and regulatory constraints affecting scheduling
Deliverable formats and integration with existing workflows
Cost-benefit comparisons against traditional methods

…builds realistic expectations and positions drone services as premium offerings rather than commodity alternatives.

Actionable Next Steps

For surveying professionals considering drone integration or seeking to enhance existing capabilities:

Immediate Actions (This Month)

Regulatory Compliance: Complete Flyer ID and Operator ID registration if not already current
Market Research: Identify 3-5 potential clients or projects where drone surveying offers clear advantages
Equipment Evaluation: Research platforms matching your specific application requirements and budget
Training Planning: Identify A2 CofC courses or advanced photogrammetry training programs
Insurance Consultation: Discuss coverage requirements and costs with specialized drone insurance providers

Short-Term Implementation (3-6 Months)

Equipment Acquisition: Purchase or lease appropriate drone platform and supporting equipment
Certification Completion: Obtain required pilot certifications and operational authorizations
Software Proficiency: Complete training on photogrammetry processing software
Trial Projects: Execute 3-5 internal or discounted projects to develop workflow proficiency
Marketing Development: Create case studies, service descriptions, and client-facing materials

Long-Term Development (6-12 Months)

Service Expansion: Develop specialized offerings (construction monitoring, volumetric analysis, infrastructure inspection)
Workflow Optimization: Refine procedures based on project experience to maximize efficiency
Technology Enhancement: Add capabilities (thermal imaging, LiDAR, multispectral) addressing identified market opportunities
Strategic Partnerships: Develop relationships with complementary service providers (construction firms, engineering consultants, developers)
Thought Leadership: Share expertise through industry presentations, articles, or training others

The Competitive Imperative

The question facing surveying professionals in 2026 is no longer whether to adopt drone technology, but how quickly and effectively to integrate these capabilities. Clients increasingly expect comprehensive 3D documentation, rapid turnaround, and cost-effective pricing that traditional methods cannot deliver.

Firms offering chartered surveyor services across residential and commercial sectors find drone capabilities essential for competitive differentiation, enabling them to deliver superior results while maintaining profitability in an increasingly competitive market.

The technology's accessibility—with professional-grade systems available for £10,000-£15,000 and breaking even within months—removes capital barriers that historically limited advanced surveying technology to large organizations. Small firms and individual practitioners can compete effectively with established players by leveraging technology to offset resource advantages.

Looking Forward

The trajectory of drone surveying technology continues upward, with developments on the near horizon including:

Automated feature extraction using artificial intelligence to identify boundaries, structures, and terrain features from imagery
Real-time processing generating preliminary deliverables during or immediately after flights
Enhanced autonomy with obstacle avoidance enabling complex missions in challenging environments
Regulatory streamlining through digital authorization and automated compliance verification
Sensor fusion combining photogrammetry, LiDAR, thermal, and multispectral data in unified workflows

These advances will further improve efficiency and expand applications, but the fundamental value proposition—faster, cheaper, more comprehensive surveying—remains constant.

Mastering Drones in Land Surveying: Mastering UAV Photogrammetry for Faster, Cheaper Boundary Mapping in 2026 positions professionals to capitalize on current opportunities while building capabilities for emerging applications. The investment in equipment, training, and workflow development pays dividends through expanded service offerings, improved client satisfaction, operational efficiency, and competitive positioning.

The construction boom, infrastructure renewal requirements, and increasing demand for accurate spatial data create unprecedented opportunities for surveying professionals equipped with modern tools and skills. Those who embrace this transformation will thrive; those who resist will find themselves increasingly marginalized in a technology-driven marketplace.

The time to act is now. The technology is proven, the economics are compelling, and the market is ready. Whether you're taking your first steps into drone surveying or seeking to enhance existing capabilities, the path forward is clear: invest in the right equipment, develop systematic proficiency, integrate with existing services, and deliver exceptional value to clients who increasingly expect nothing less.

For additional guidance on integrating advanced surveying technologies with traditional assessment methods, explore our comprehensive resources on RICS building surveys and commercial property surveying, which detail how modern firms combine aerial photogrammetry with established practices to deliver superior results.

References

[1] How Uav Photogrammetry Enhances Surveying Accuracy – https://mcclurevision.com/how-uav-photogrammetry-enhances-surveying-accuracy/

[2] Drone Surveying – https://uavcoach.com/drone-surveying/

[3] Land Surveying – https://enterprise.dji.com/surveying/land-surveying

[4] Drone For Mapping – https://www.jouav.com/blog/drone-for-mapping.html

[5] Revolutionizing Land Surveying The Rise Of Drone Technology And Uav Applications In 2026 – https://nottinghillsurveyors.com/blog/revolutionizing-land-surveying-the-rise-of-drone-technology-and-uav-applications-in-2026

[6] Watch – https://www.youtube.com/watch?v=CSTodaZb4Vc

[7] 3dsurvey Is The Best Photogrammetry Software In 2026 – https://3dsurvey.si/3dsurvey-is-the-best-photogrammetry-software-in-2026/
